JB Caravans Dirt Roader

Make your own roads

Have you grown tired of the bitumen and looking for some semi-off road adventure?  Then the entry level semi – off road Dirt Roader is perfect for you , tackle light corrugation easily and in style.  Discover the wondrous National Parks and scenic locations that Australia has to offer. The Dirt Roader truly caters for today’s modern and adventurous travelers planning a trip of a lifetime. With its high quality finish, durable exterior and superb craftsmanship, the Dirt Roader by JB offers the best of both comfort and ruggedness.

Brochure Video Promo

We use only the highest quality construction

JB Caravans Construction


Using only Australian 3.2mm thick tube steel, JB Caravans manufactures all chassis in its own facility. Our engineered chassis are built to handle the fit for purpose conditions that our various caravans are built for in Australian tough conditions.

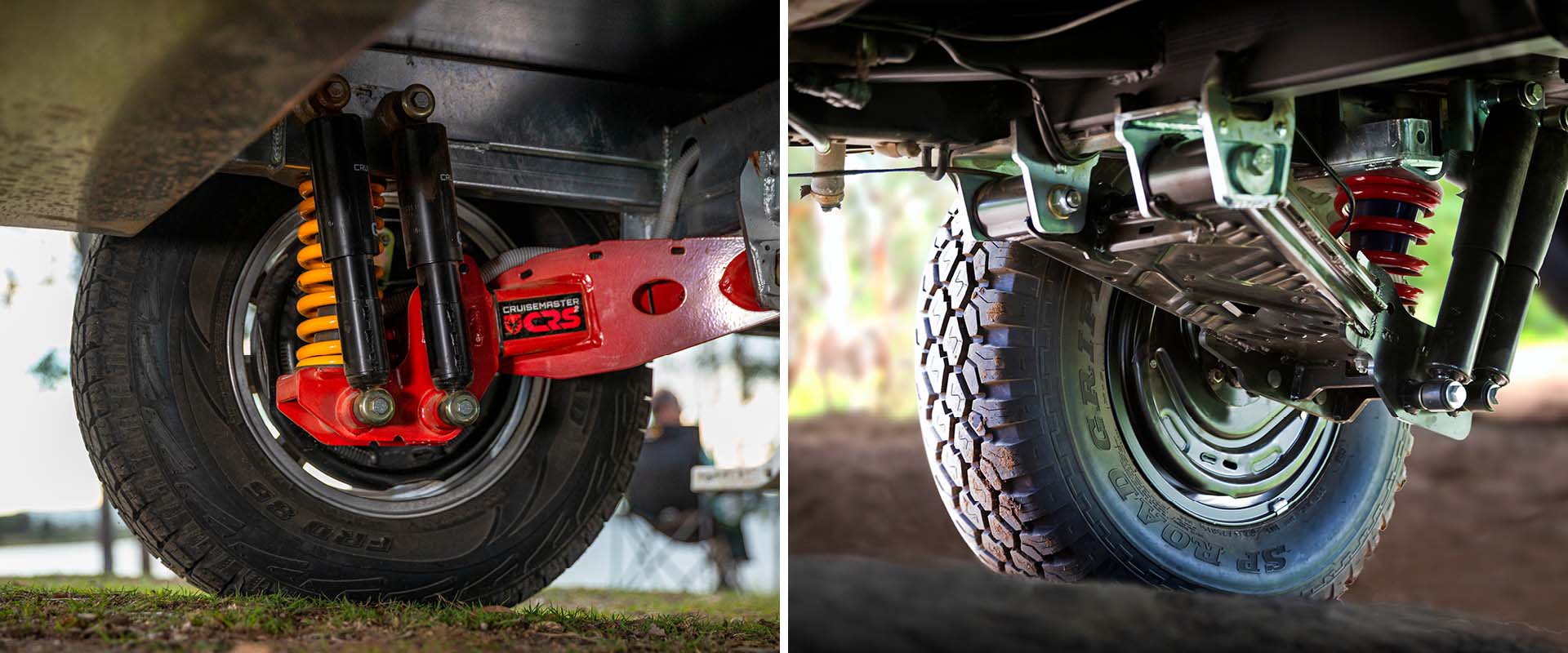

JB uses only independent suspensions which are rated for Australia’s tough conditions.  Whether that be for on – road use, semi off – road or off road. Our tested suspensions include Alko and Cruisemaster. The Dirt Roader is fitted with a 3.3T CRS Suspension.


Offering one of Australia’s most comprehensive 3 year warranty’s The JB Caravans warranty includes caravan structure, electrical and plumbing.  The warranty is a fit for purpose warranty including off road.

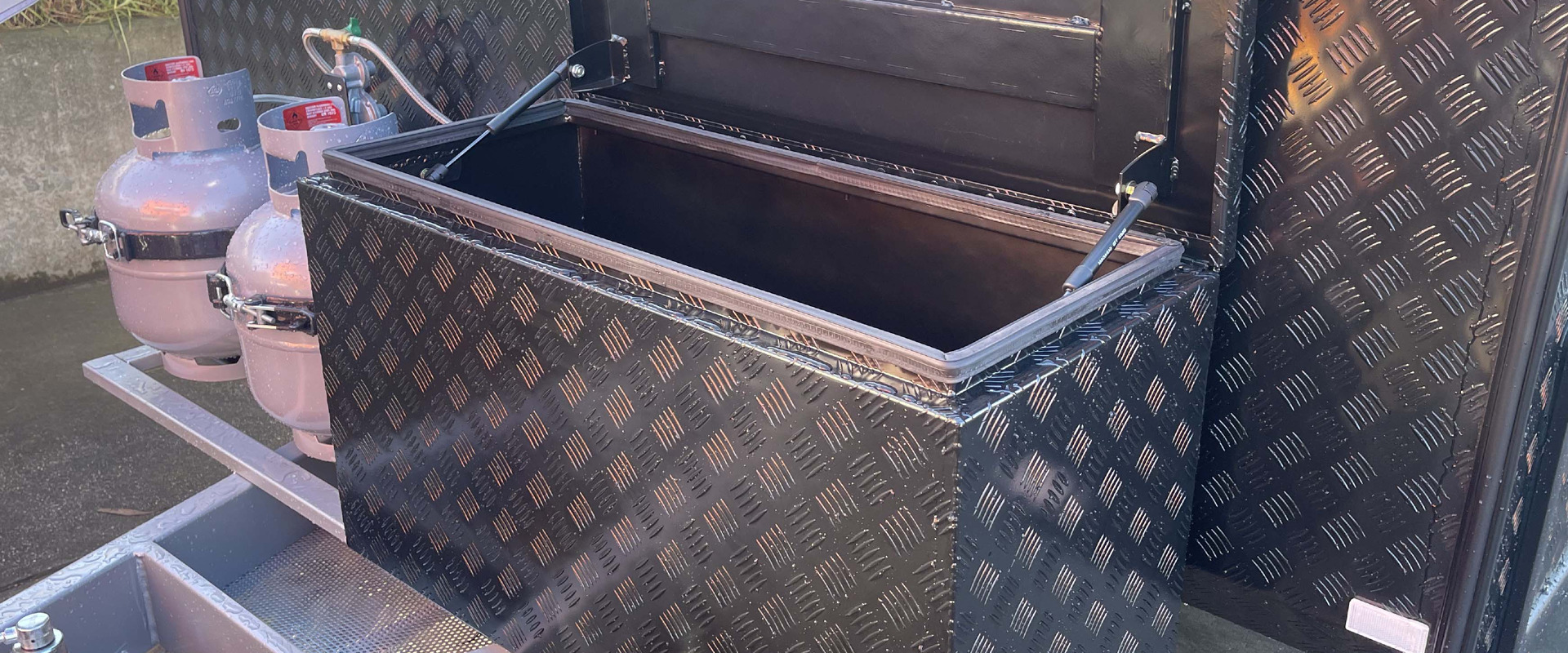

An extremely rigid smooth alucomp is utilised on the Dirtroader giving it a sleek and modern finish.  This is coupled with a strong checkerplate to keep your semi – off road caravan protected on your travels.


Fitted with Alko – ESC as standard as well as electric brakes and break away switch you can rest assured that you are safe when towing the Dirt Roader.  European windows as well as a security mesh are also fitted for your safety.


A range of options and sizes are available on this van including slide out kitchen and increased solar for free camping.  Our Luxe interior has already been fitted with many features as standard.

Build Your Own

Dirt Roader

Have you grown tired of the bitumen and looking for some semi-off road adventure?  Then the entry level semi – off road Dirt Roader is perfect for you , tackle light corrugation easily and in style.  Discover the wondrous National Parks and scenic locations that Australia has to offer. The Dirt Roader truly caters for today’s modern and adventurous travelers planning a trip of a lifetime. With its high quality finish, durable exterior and superb craftsmanship, the Dirt Roader by JB offers the best of both comfort and ruggedness.

JB Caravans Dire Roader
JB Caravans Dire Roader

Take A Look Inside

Take a virtual look inside our incredible Dirt Roader Caravan featuring compact layouts, quality finishing and appliances. The Dirt Roader is eye catching inside and out.

3D Configurator
JB Caravans Dirt Roader
JB Caravans Dirt Roader
JB Caravans Dirt Roader
JB Caravans Dirt Roader

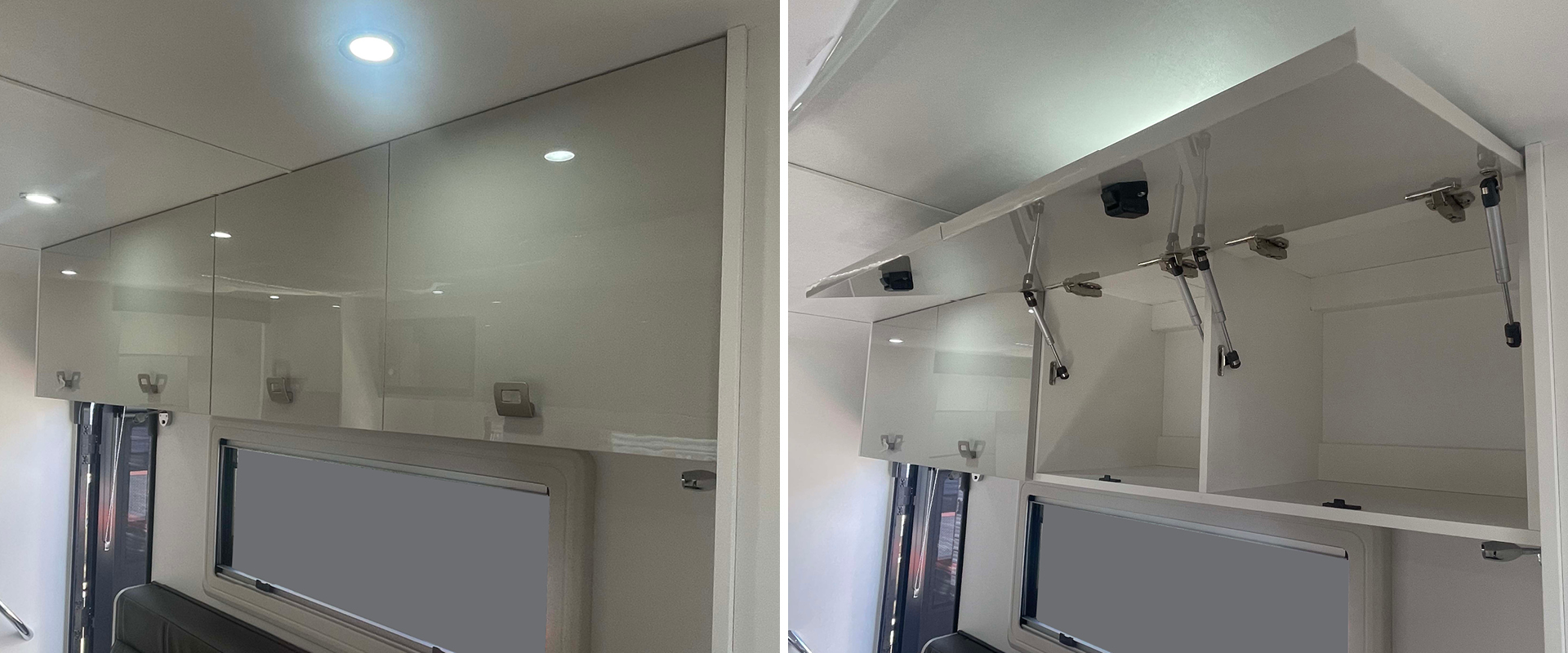

Interior

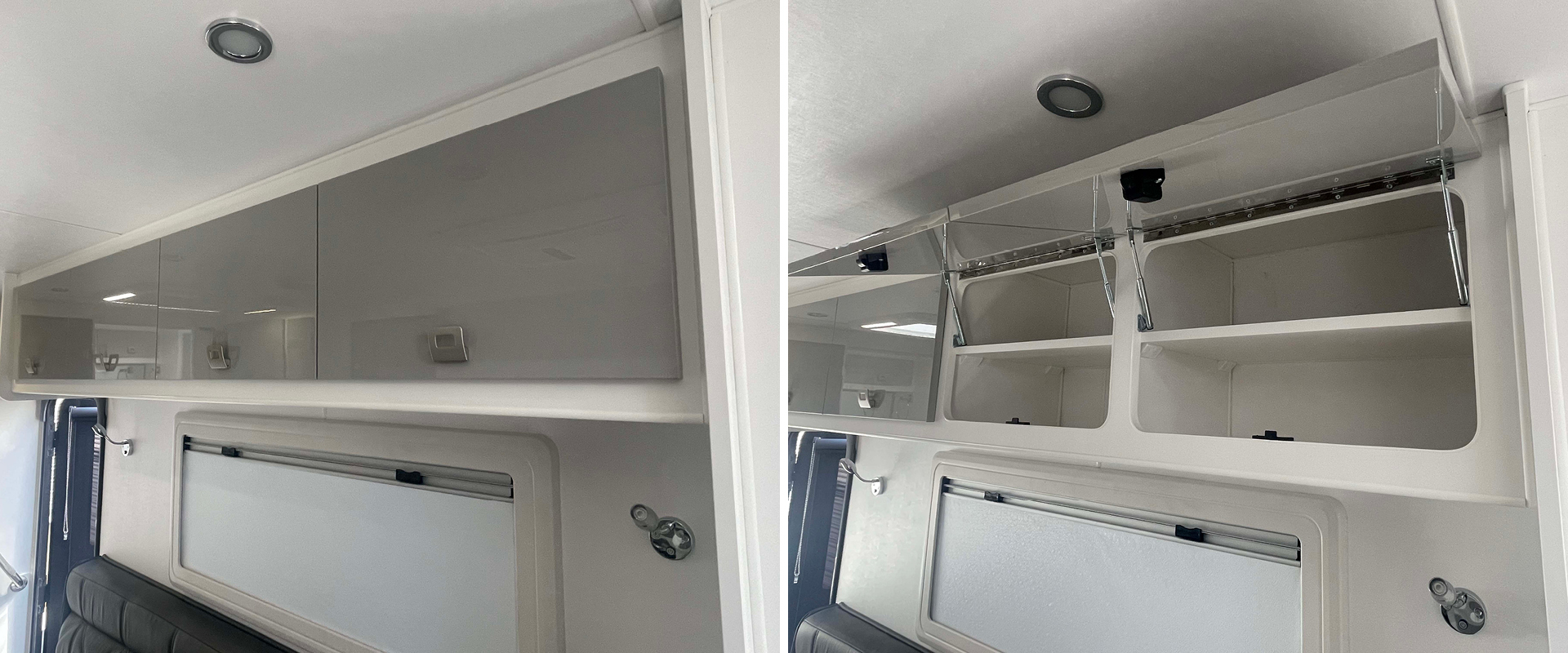

JB Caravans pride ourselves on our high quality interior finishes, we use only the best in materials to give our caravans a luxurious finish and unsurpassed quality.  We employ a highly skilled workforce as well as using CNC technology and edge banders to ensure a quality product.

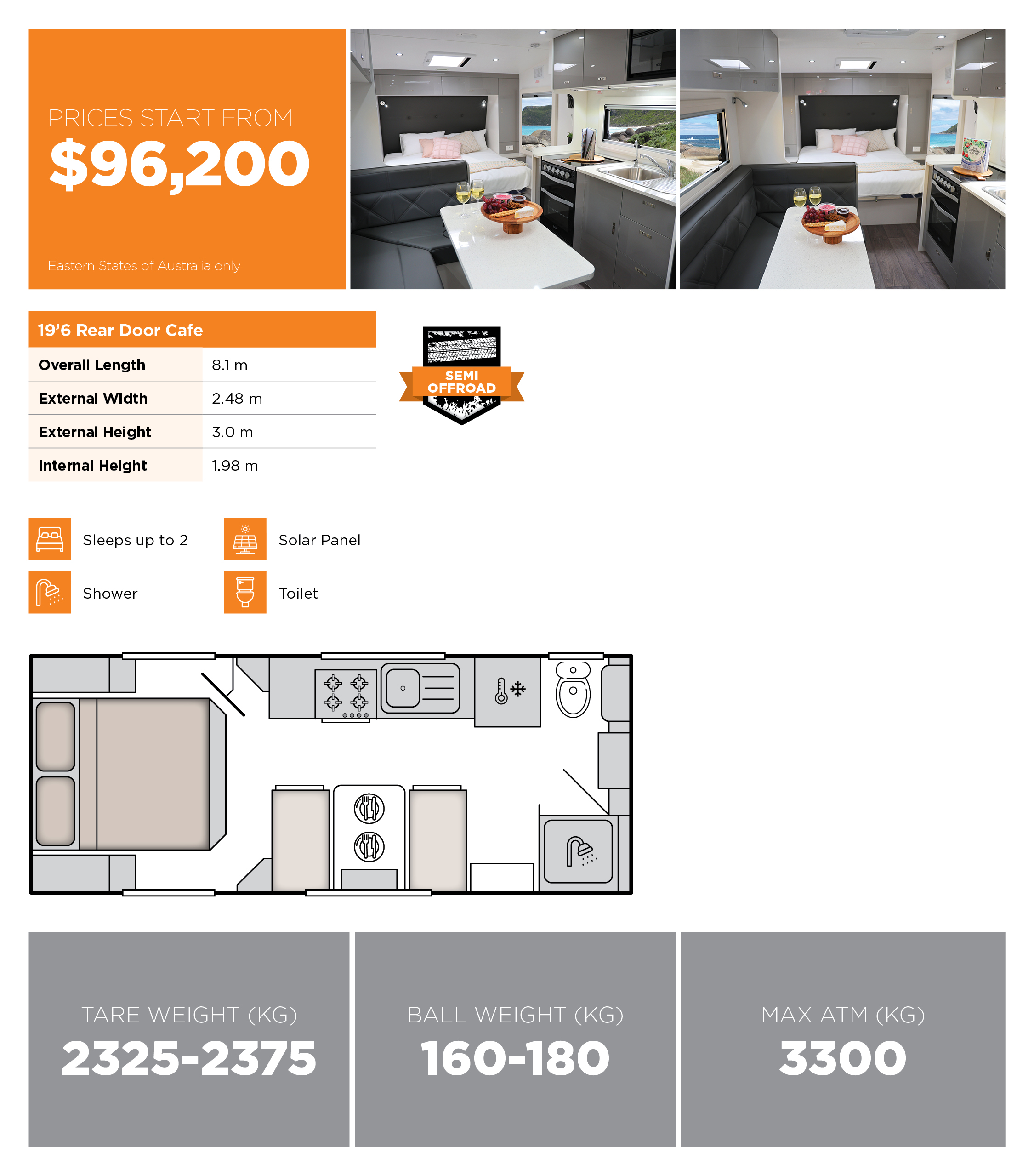

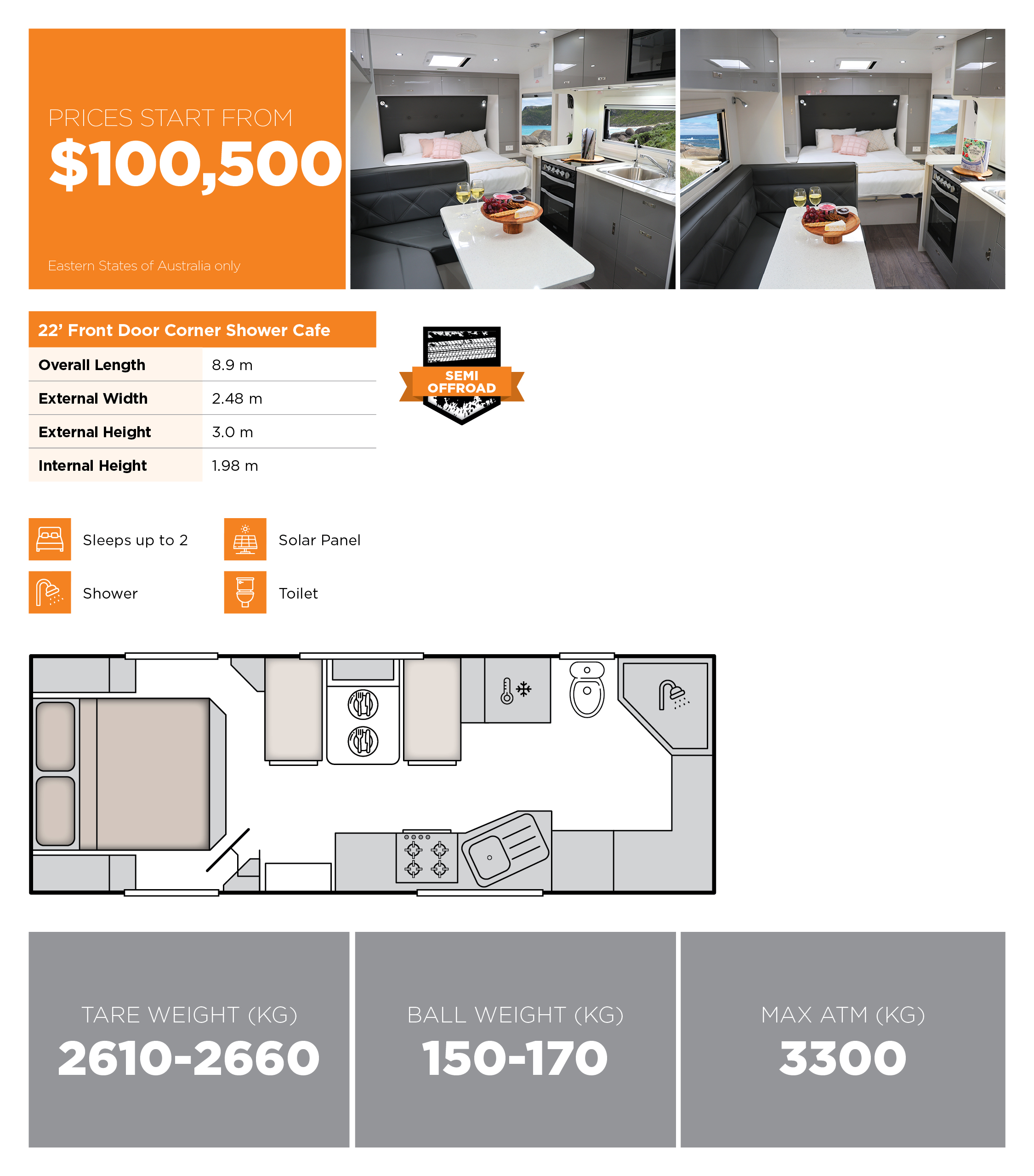

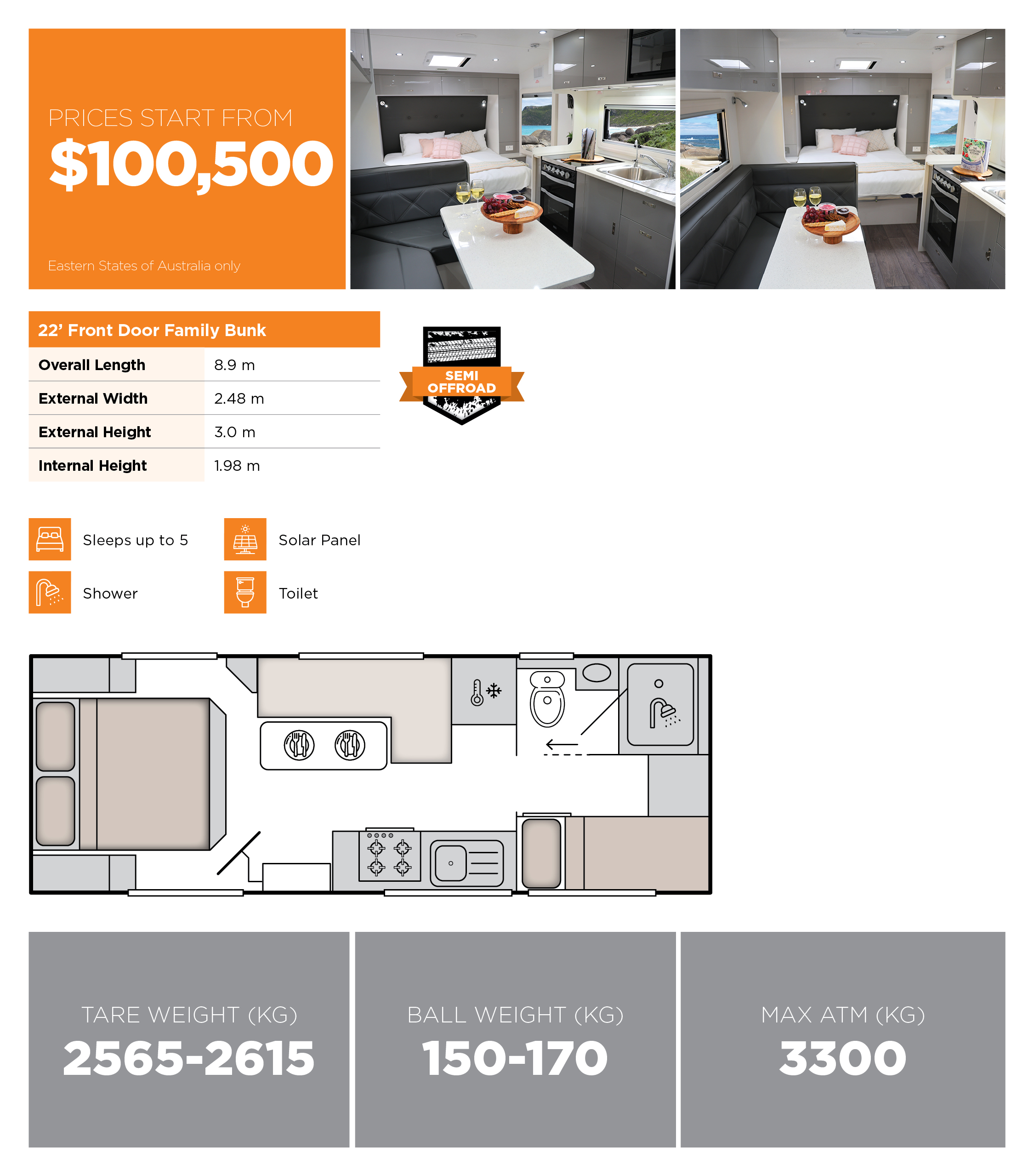

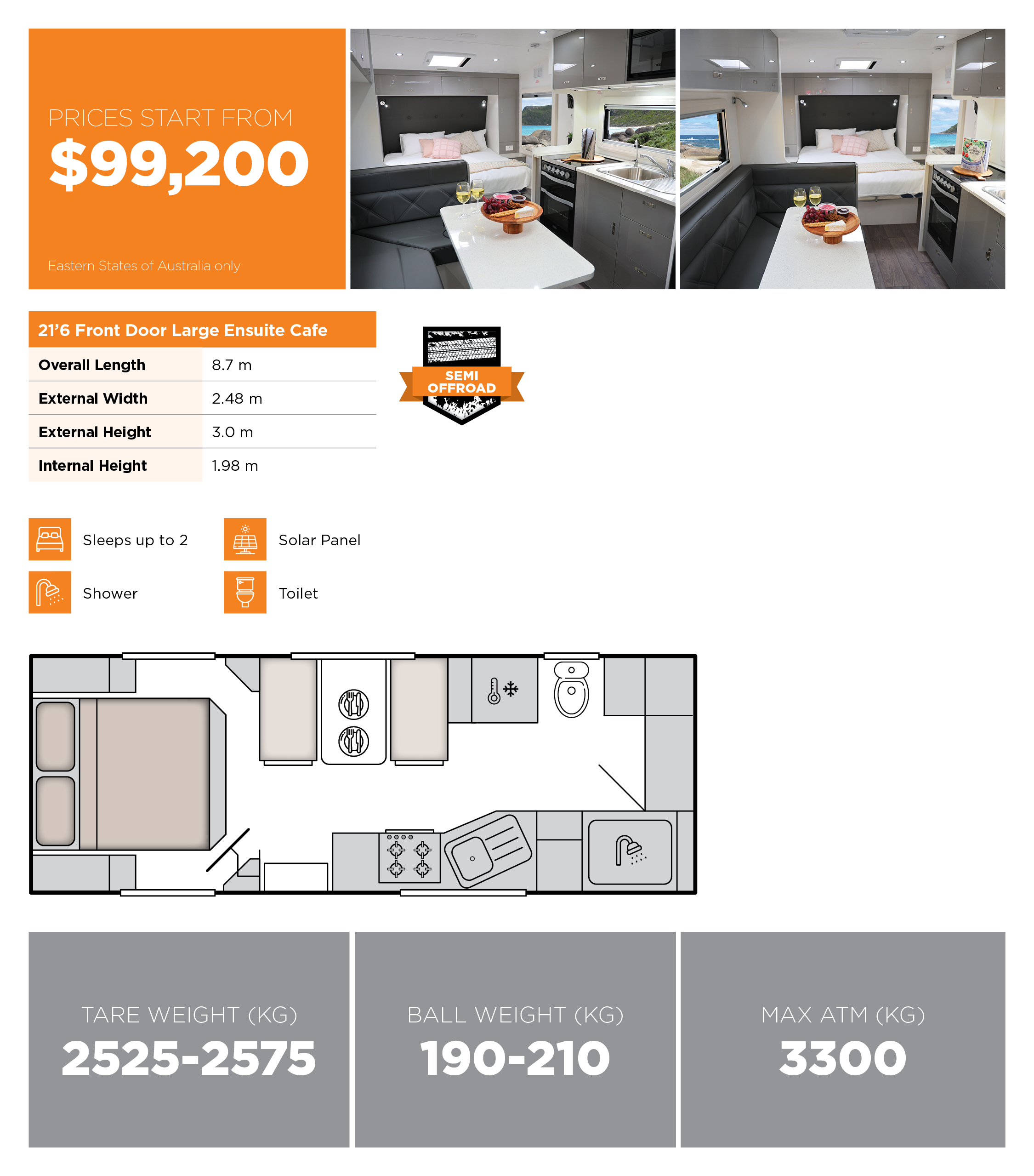

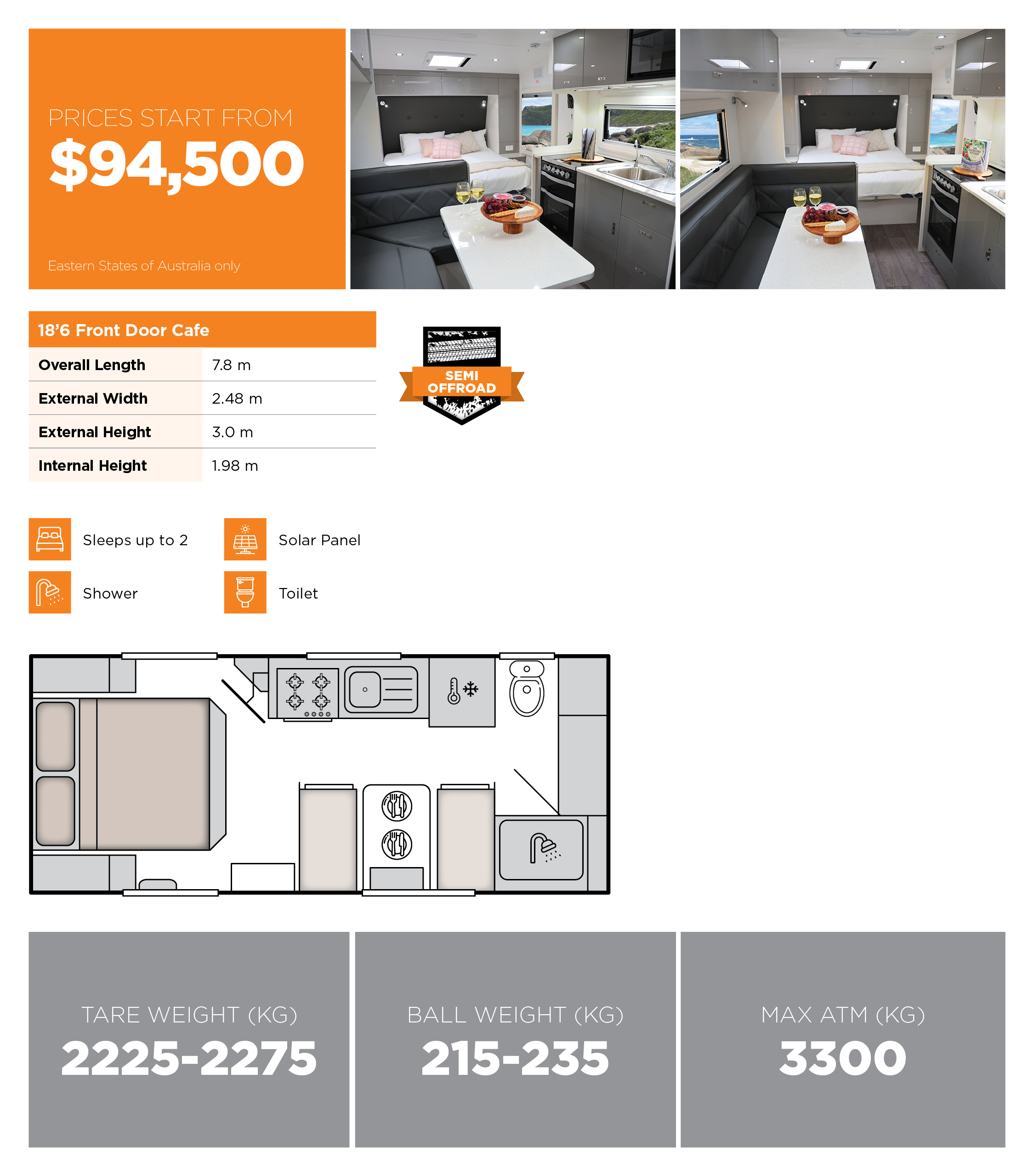

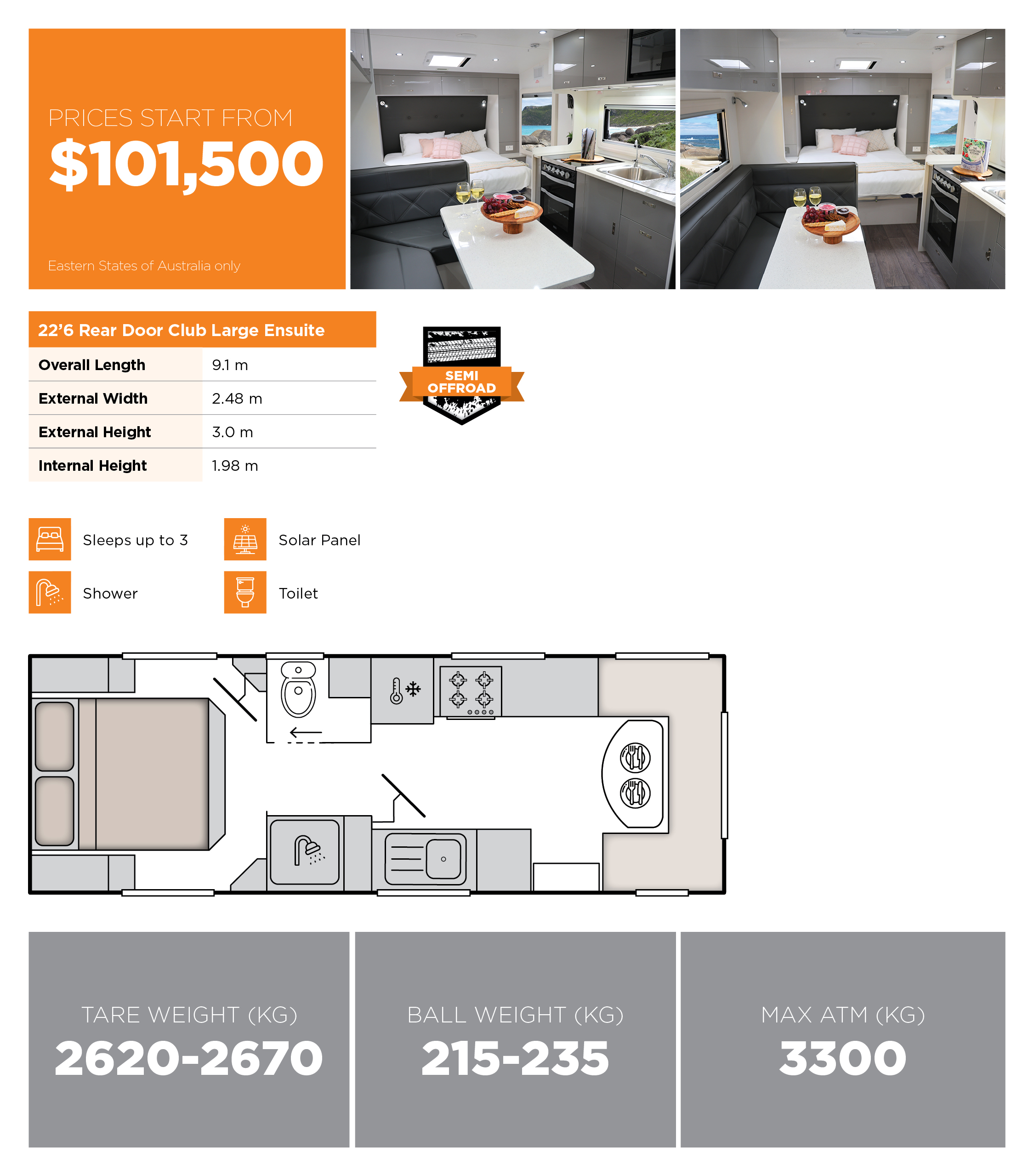

Floor Plans

The Dirt Roader comes in a range of configurations. Simply select a floorplan below to learn more.

Dimensions

Overall Body Length: 8.0m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2380 - 2450
Tow Ball: 200kg - 210kg

Dimensions

Overall Body Length: 8.1m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2380 - 2430
Tow Ball: 160kg - 180kg

Dimensions

Overall Body Length: 8.2m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2500 - 2550
Tow Ball: 210kg - 220kg

Dimensions

Overall Body Length: 8.4m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2430 - 2480
Tow Ball: 160kg - 180kg

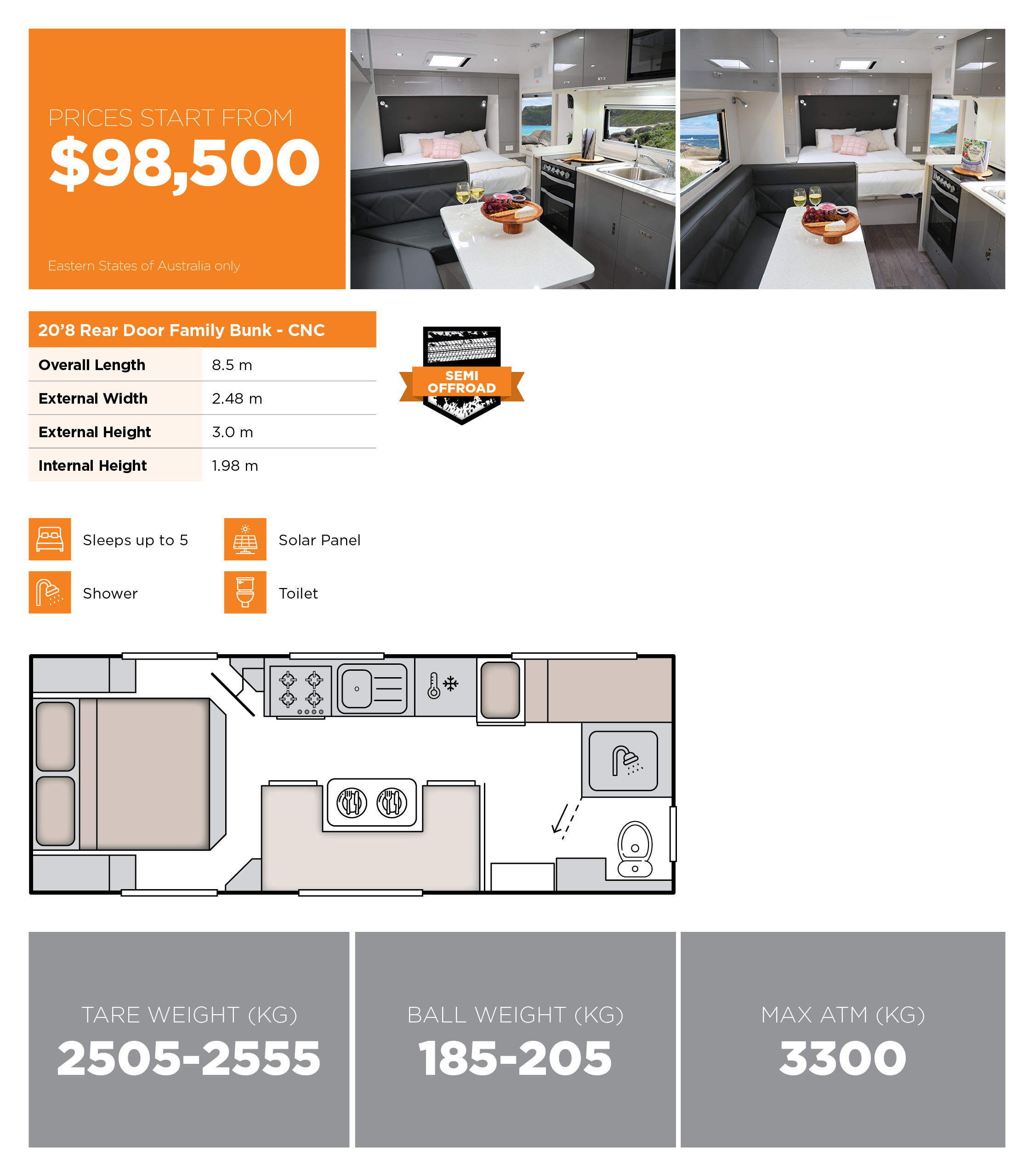

Dirt Roader 20'8ft

Dimensions

Overall Body Length: 8.5m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2450 - 2500
Tow Ball: 120kg - 130kg
JB Caravans Dirt Roader

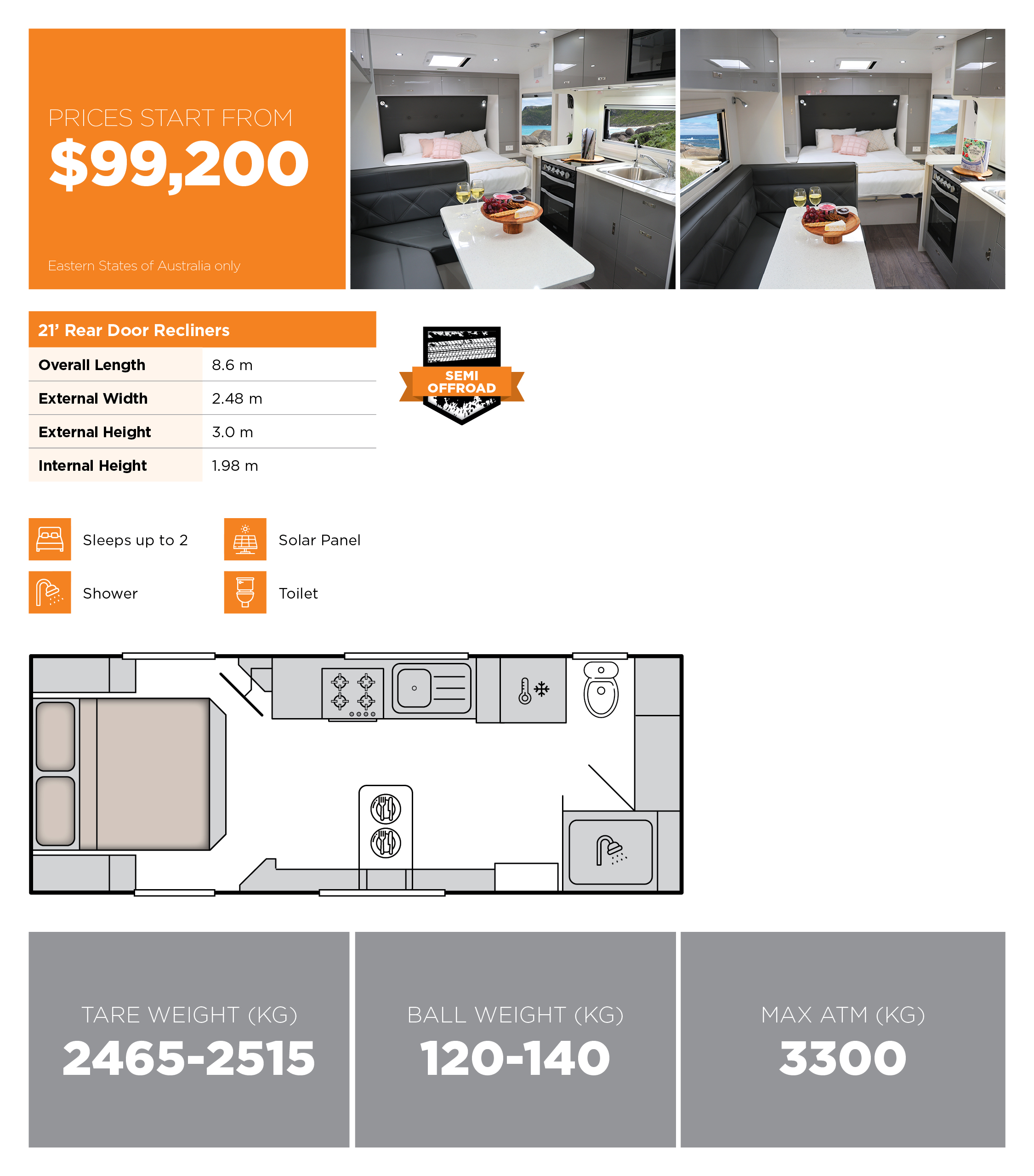

Dimensions

Overall Body Length: 8.6m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2450 - 2500
Tow Ball: 120kg - 140kg

Dimensions

Overall Body Length: 8.9m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98m
Tare: 2550 - 2650
Tow Ball: 150kg - 160kg

Dimensions

Overall Body Length: 9.0m
External Width: 2.48m
External Height: 3.1m
Internal Height: 1.98
Tare: 2550 - 2600
Tow Ball: 150kg - 160kg

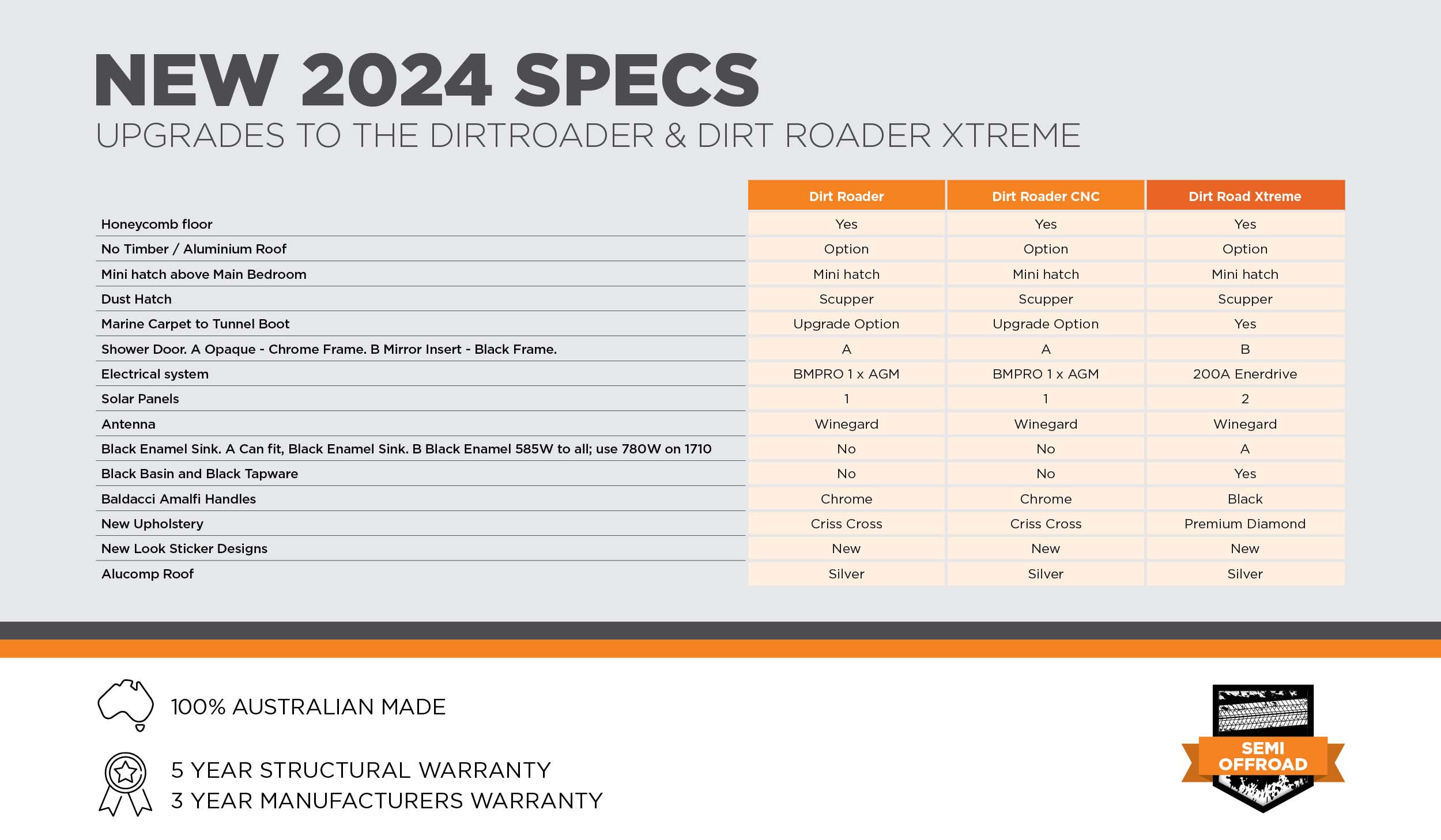

Specifications

  • Premium Laminate benchtops
  • Innerspring mattress
  • Rollerblind on entry
  • Splashbacks in a range of colours
  • Queenbeds
  • Slatted bed frame on gas struts
  • One piece vinyl flooring
  • Piano Hinges throughout
  • Lightweight doors
  • Chrome push button handles
  • Footrest
  • Dometic 3 way tropical fridge
  • CD/DVD Combo
  • 24″ Smsrt TV
  • Wineguard antenna
  • Thetford min grill gas
  • Microwave
  • Smoke alarm
  • Fire extinguisher
  • Reverse Cycle Air-Con/heating
  • Top load washing machine
  • Picnic table
  • Stoneshield
  • Midi hatch
  • Roll out awning
  • Higher checker plate
  • Triple lock entry door
  • Skylight
  • European double glazed windows
  • Exclusive exterior graphics
  • Chrome grab handles
  • Spugal chassis
  • 4 inch mainframe
  • Spare wheel on rear
  • 6 inch A-Frame
  • Cruisemaster CRS 3.3T suspension
  • Electric brakes
  • Dual axle
  • Alko Ball coupling

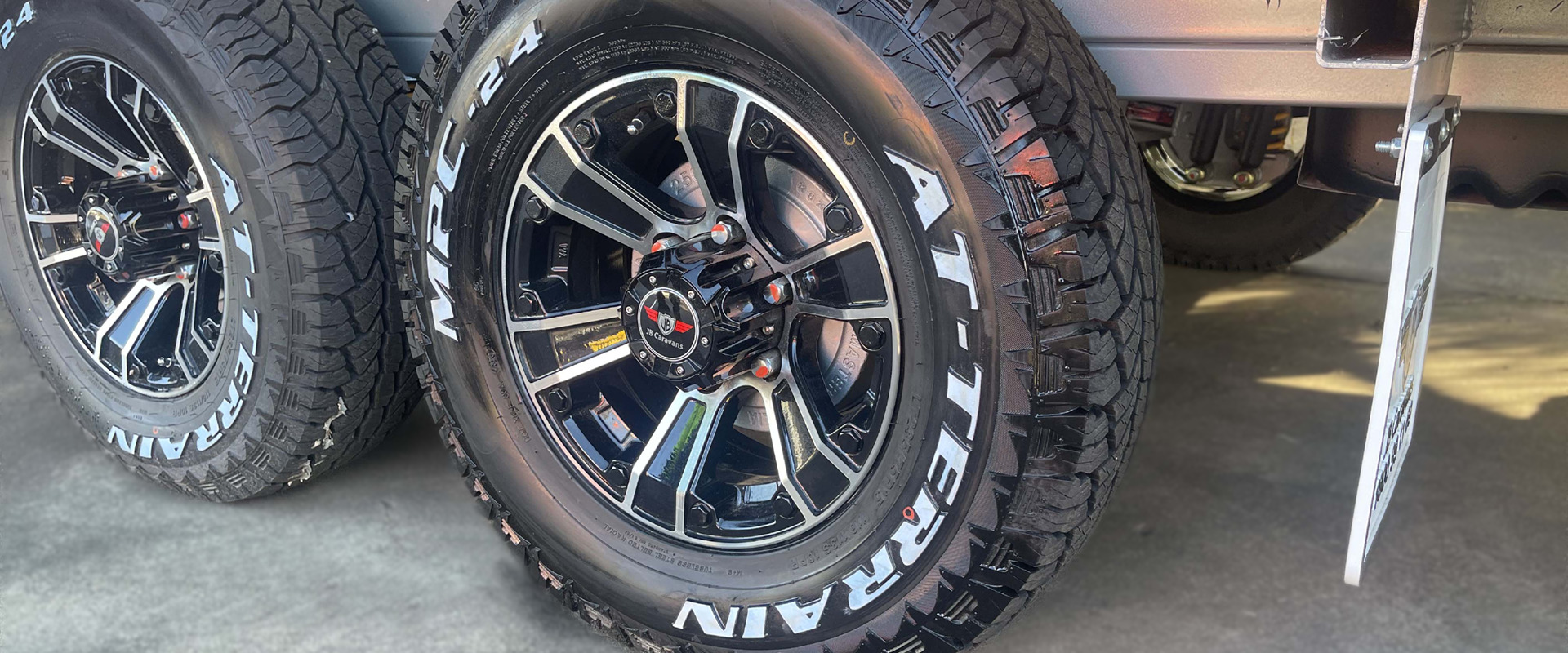

  • 15″ rims
  • Mesh on A-Frame
  • Pull out step
  • Alko – ESC
  • Tap on A-Frame
  • Ceramic bowl toilet
  • Mixer tap
  • Water filter
  • Ceramic basin
  • External gas bayonet
  • 12V water pump
  • 2 x 9kg gas bottles
  • Stainless steel sink
  • 2 x 95L Water tanks
  • Quickfill water filler
  • Swift 28L Gas/Elec HWS
  • Gass bayonet
  • Alloy step with light
  • LED Down lights
  • LED Reading lights
  • LED Rail above sinks
  • Anderson Plug
  • Car break away switch
  • 120Ah AGM batteries
  • 1 x 150W Solar
  • Battery box on chassis
  • External speakers
  • External TV point
  • Solar regulator
  • Anderson plug
