Feel the sting in its tail

If you have decided to go off the grid on full off road tracks and  hard to reach secluded places then the Scorpion Sting was designed for you!  The Scorpion Sting is the ultimate off road predator allowing you to fulfill your dream of seeing all of Australia, the great north and anywhere else you decide is your track. With its rugged construction, ATX Cruisemaster suspension and 16″ full off road tyres, you can be sure you will arrive safely and in luxury with the king of the outback. JB Scorpion Sting a true off road warrior.

Brochure Video Promo

We use only the highest quality construction

JB Caravans Construction

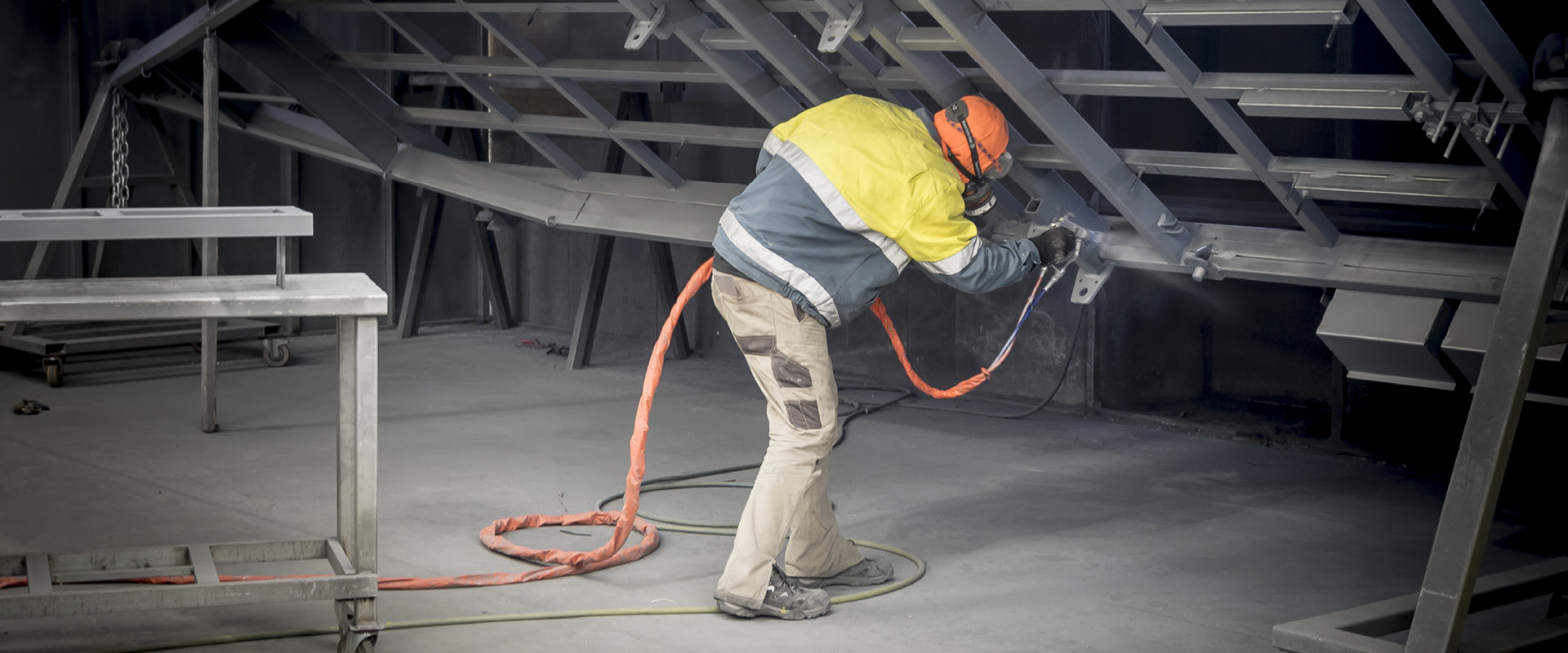

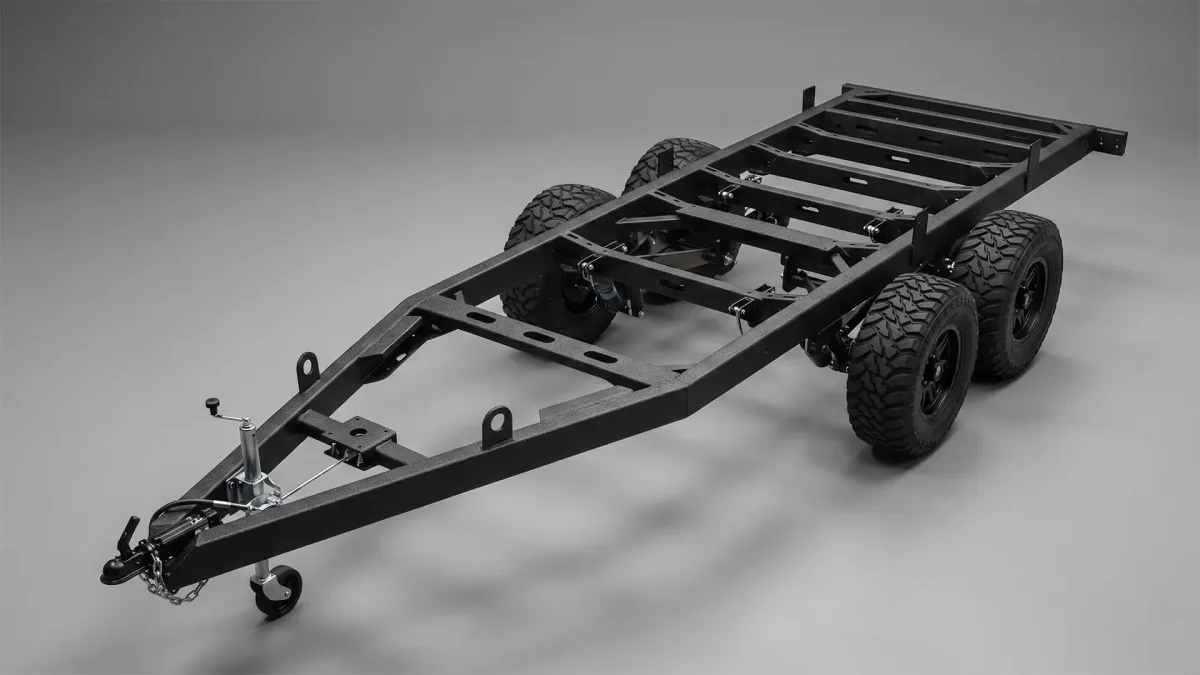

Using only Australian 3.2mm thick tube steel, JB Caravans manufactures all chassis in its own facility. Our engineered chassis are built to handle the fit for purpose conditions that our various caravans are built for in Australian tough conditions.

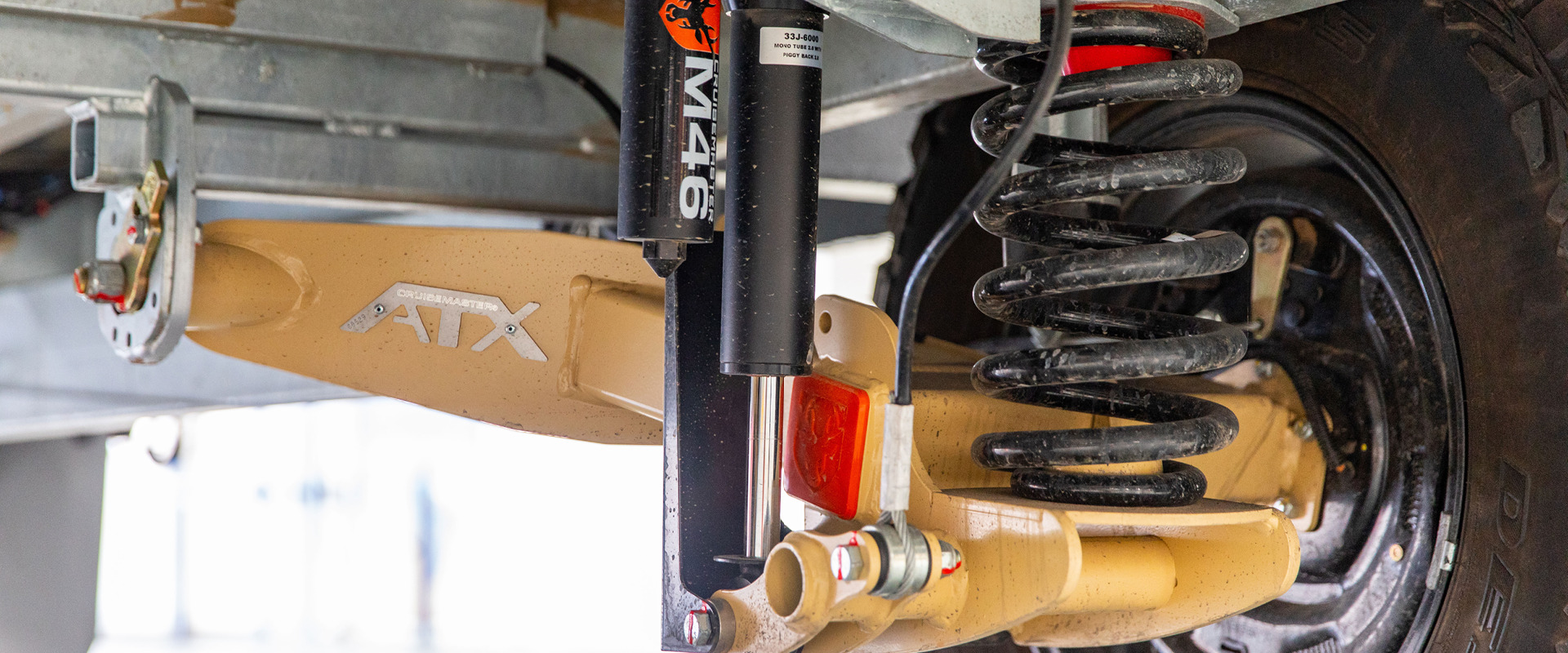

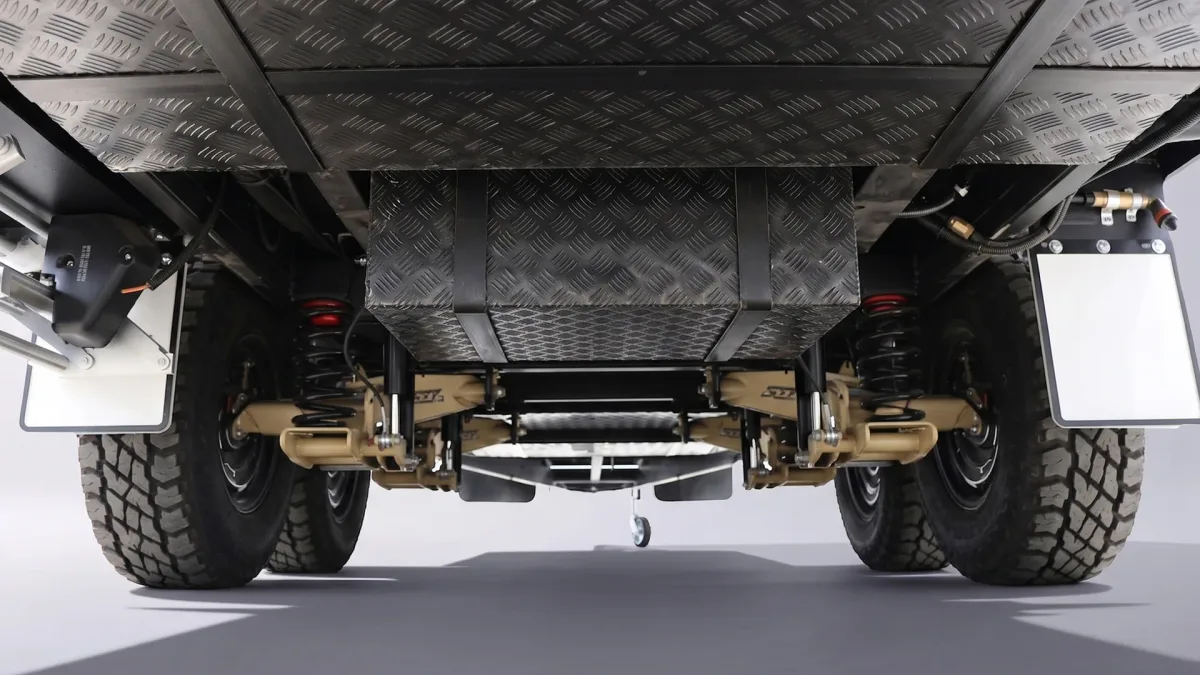

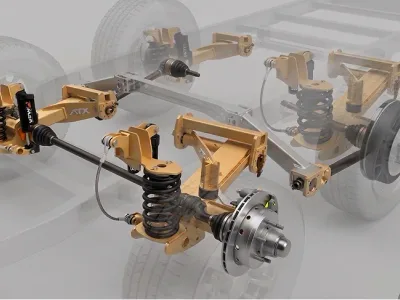

JB uses only independent suspensions on our models which are rated for Australia’s tough conditions. Whether that be for on – road use, semi off – road, off road. Our tested suspensions include Alko and Cruisemaster. the Scorpion Sting is fitted with Cruisemaster ATX Plus Coil 4.5T Suspension


Offering one of Australia’s most comprehensive 3 year warranty’s JB our warranty includes caravan structure, electrical and plumbing.  The warranty is a fit for purpose warranty including off road


An extremely rigid stucco aluminium is utilised on the Scorpion Sting giving it a tough and durable finish. This is coupled with a strong checkerplate to keep your off road caravan protected on your travels. The front and back panels also include colour coded alucomp panels.


Fitted with Alko – ESC as standard as well as electric brakes and break away switch you can rest assured that you are safe when towing the Scorpion Sting. European windows as well as a security mesh are also fitted for your safety.


A range of options and sizes are available on this van including slide out kitchen, satellite, airbag suspension etc

Build Your Own

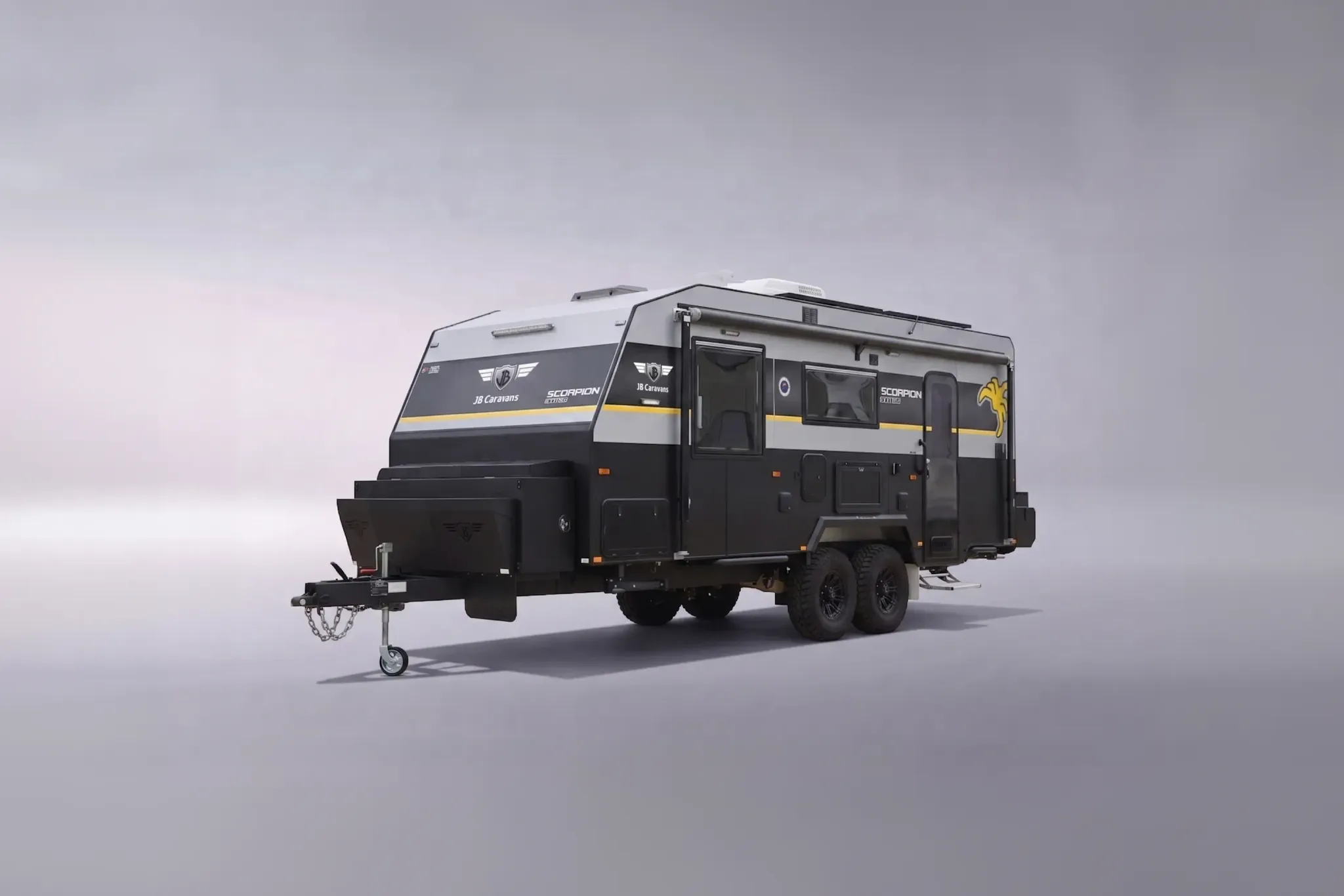

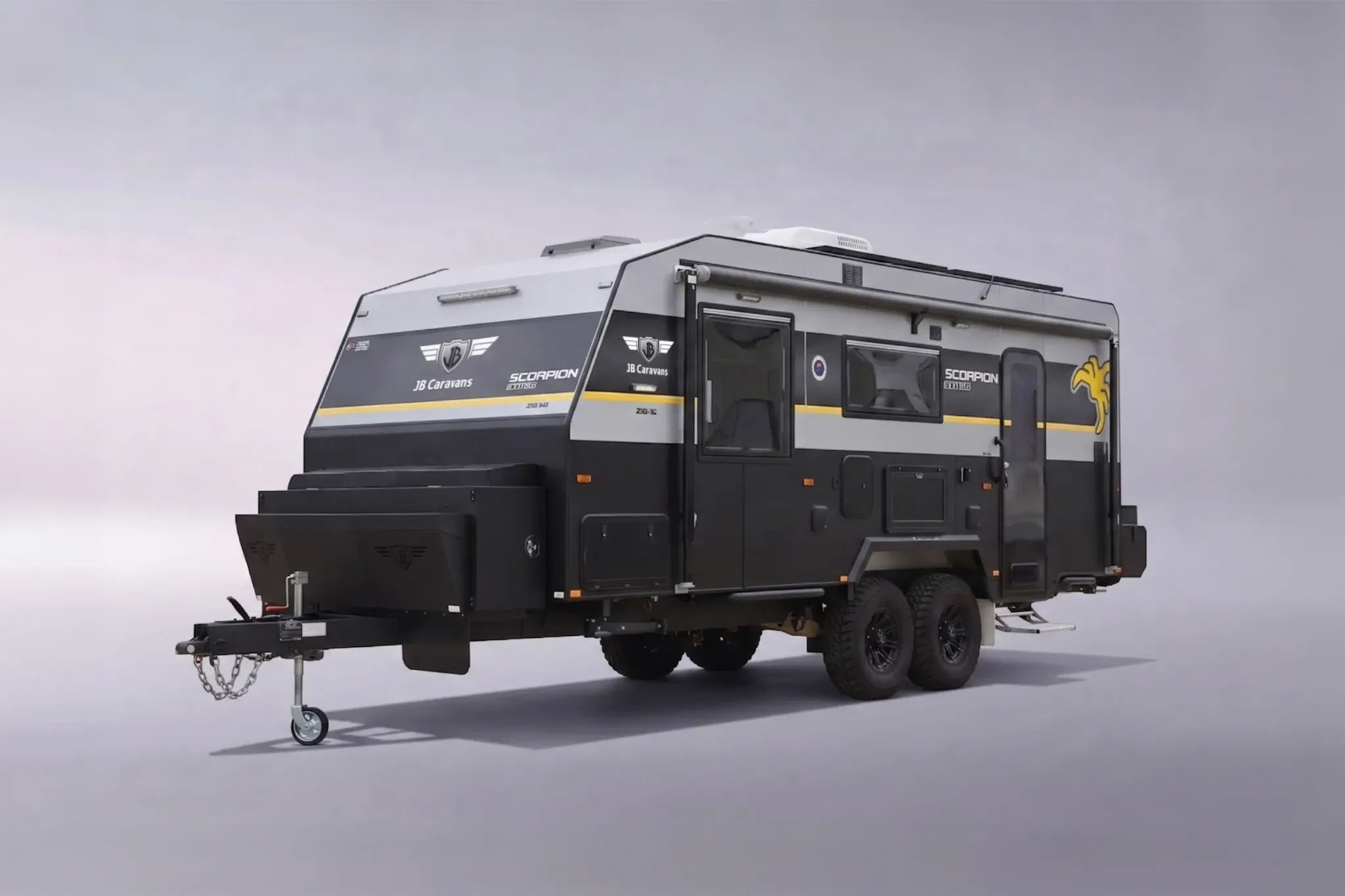

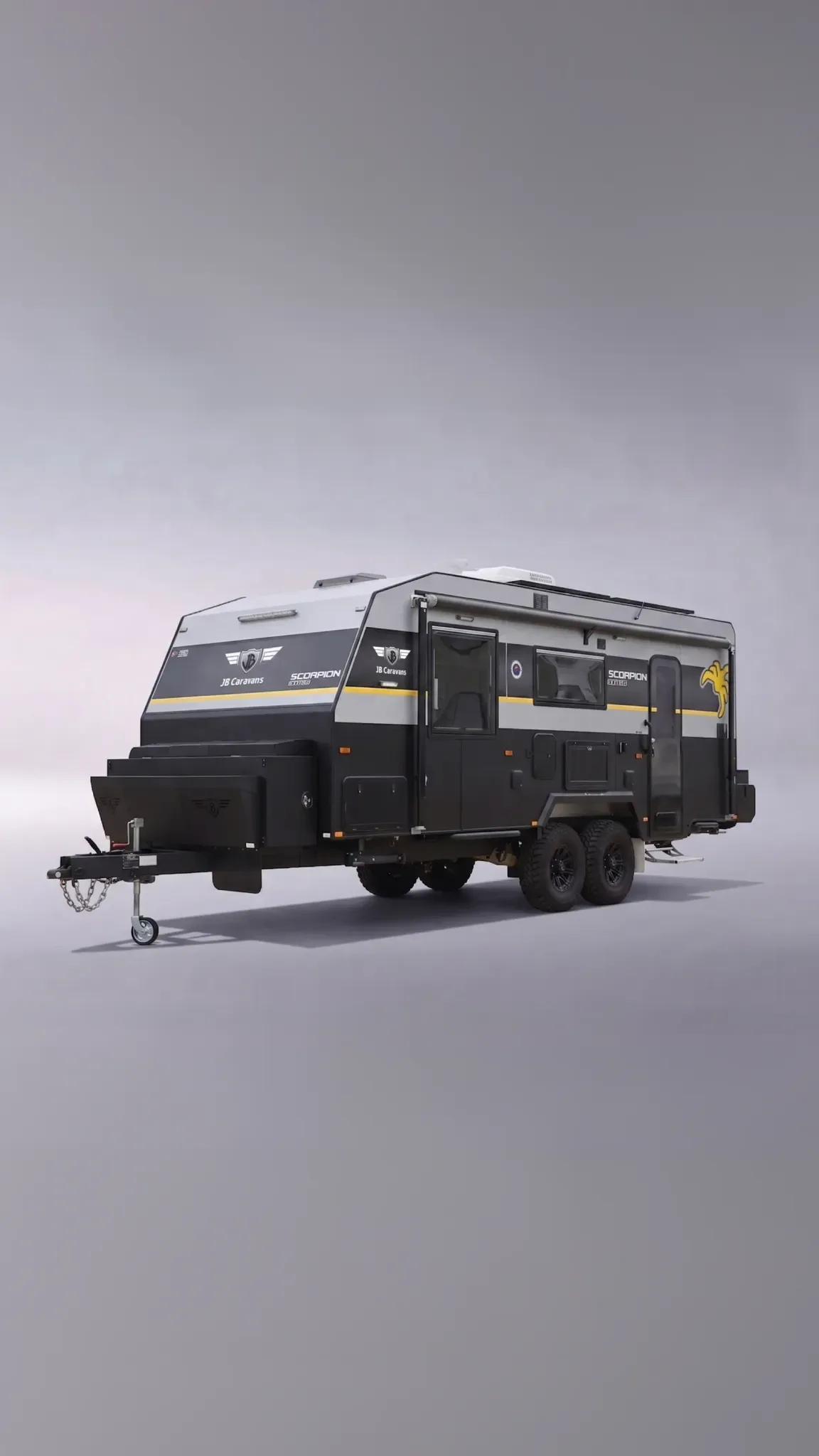

Scorpion Sting

The ultimate in off-road caravanning, the Scorpion takes you to a new level of travelling experience. Equipped for extended travel and the freedom of staying in all those special off-the-road holiday locations other caravanners can only dream about.

TAKE A LOOK INSIDE

Lorem ipsum dolor sit amet consectetur adipiscing elit duis aenean, consequat molestie inceptos fermentum tellus platea gravida ullamcorper hendrerit.

3D Configurator

Interior

JB Caravans pride ourselves on our high quality interior finishes, we use only the best in materials to give our caravans a luxurious finish and unsurpassed quality.  We employ a highly skilled workforce as well as using CNC technology and edge banders to ensure a quality product.

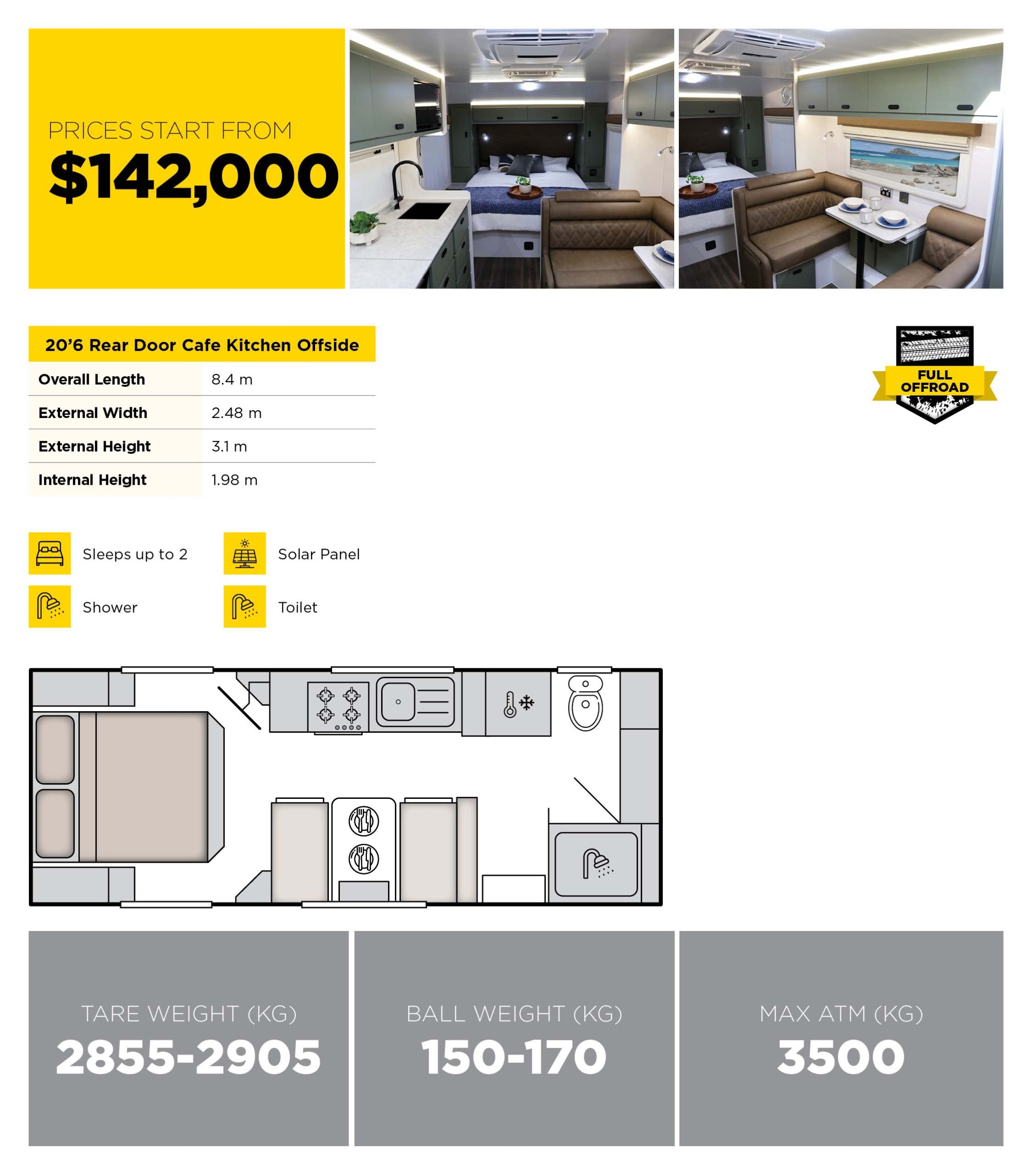

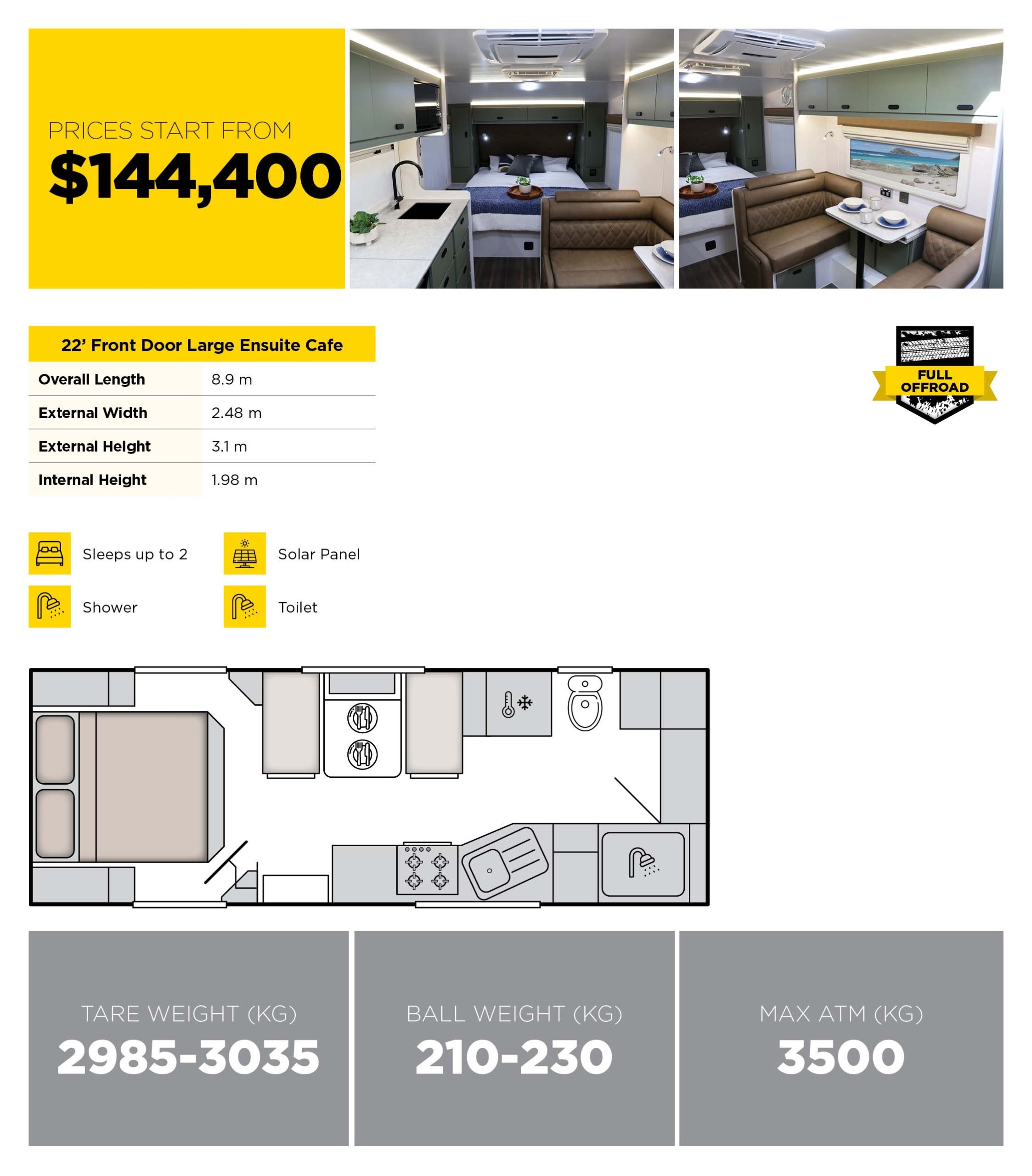

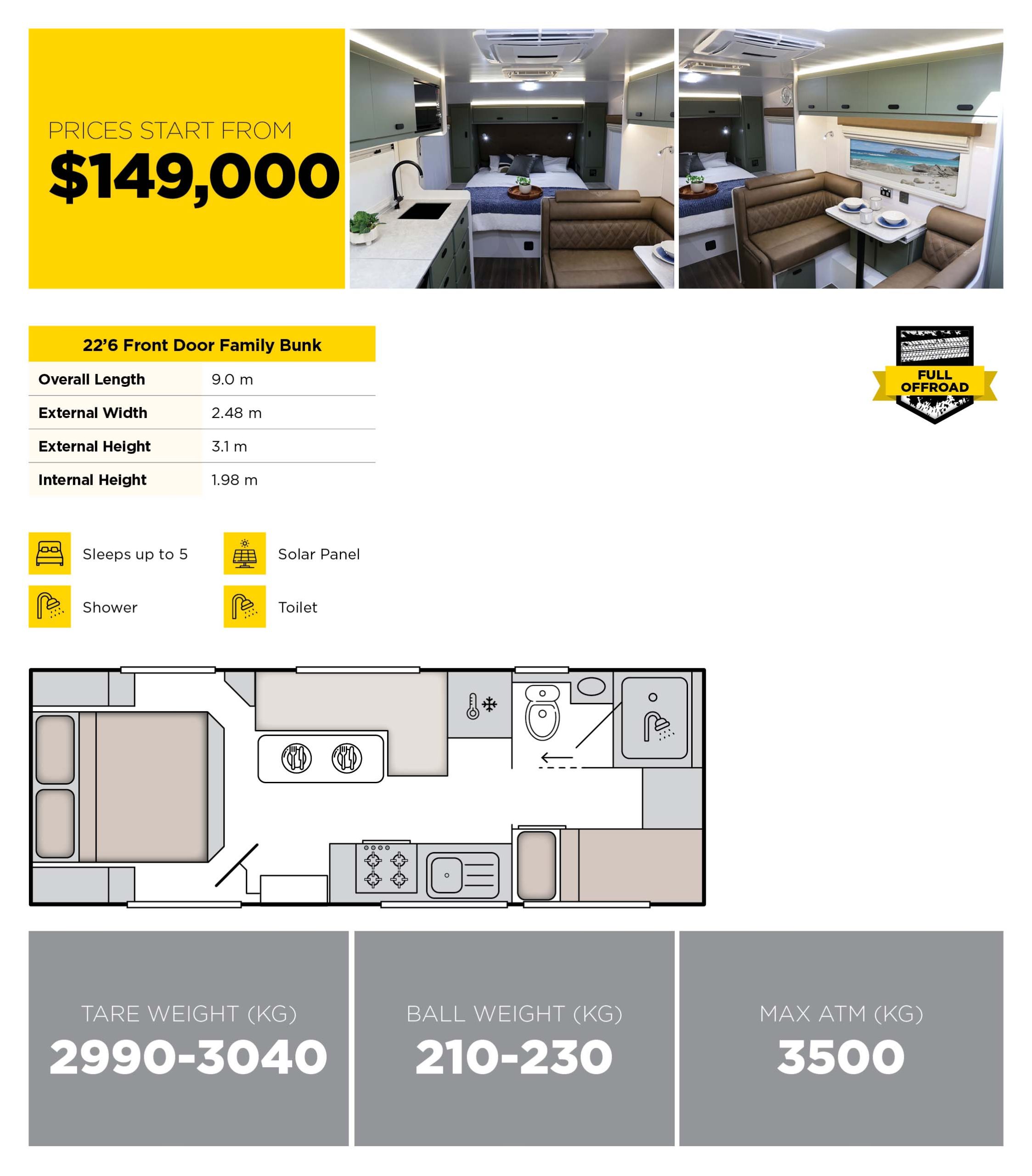

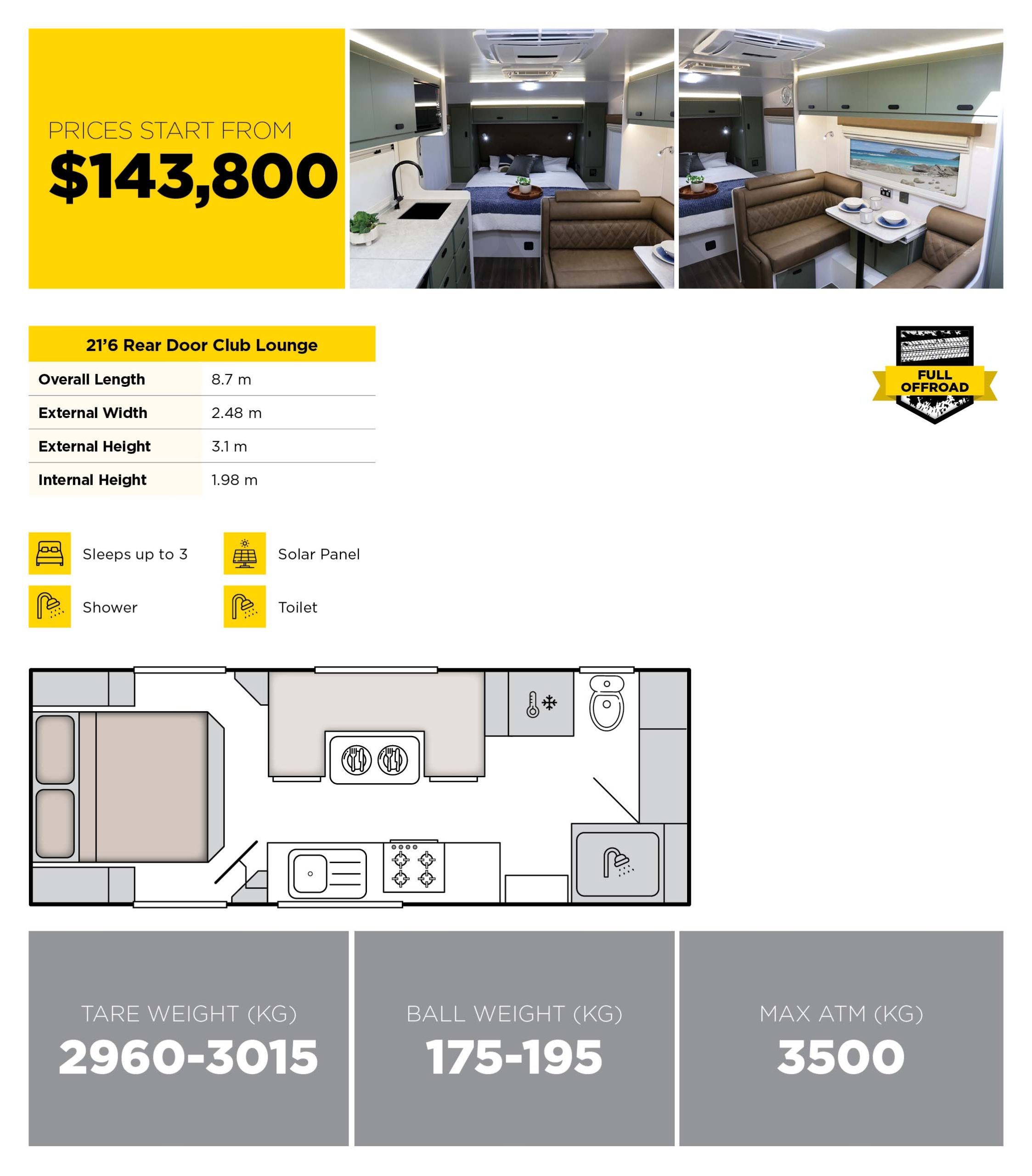

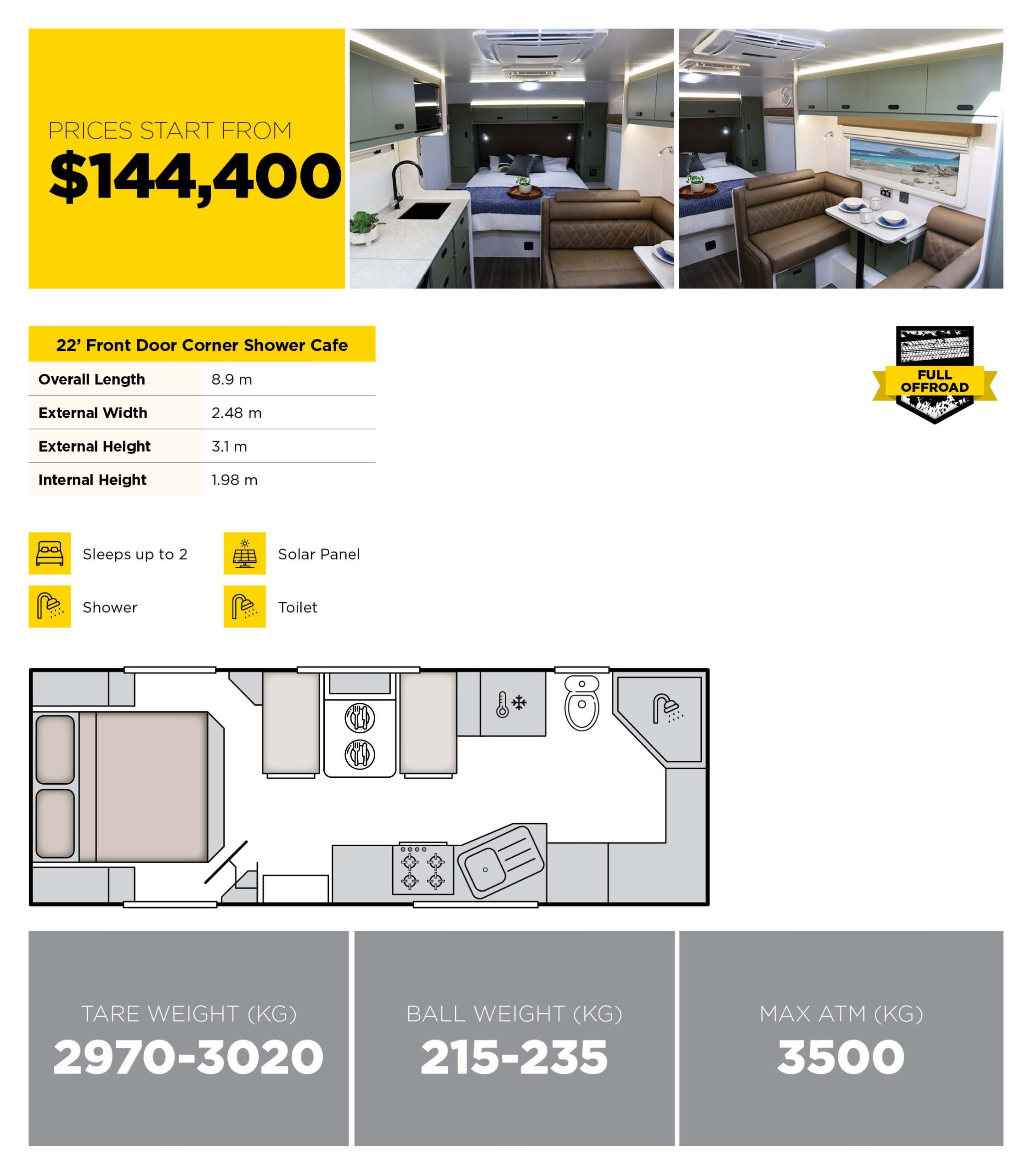

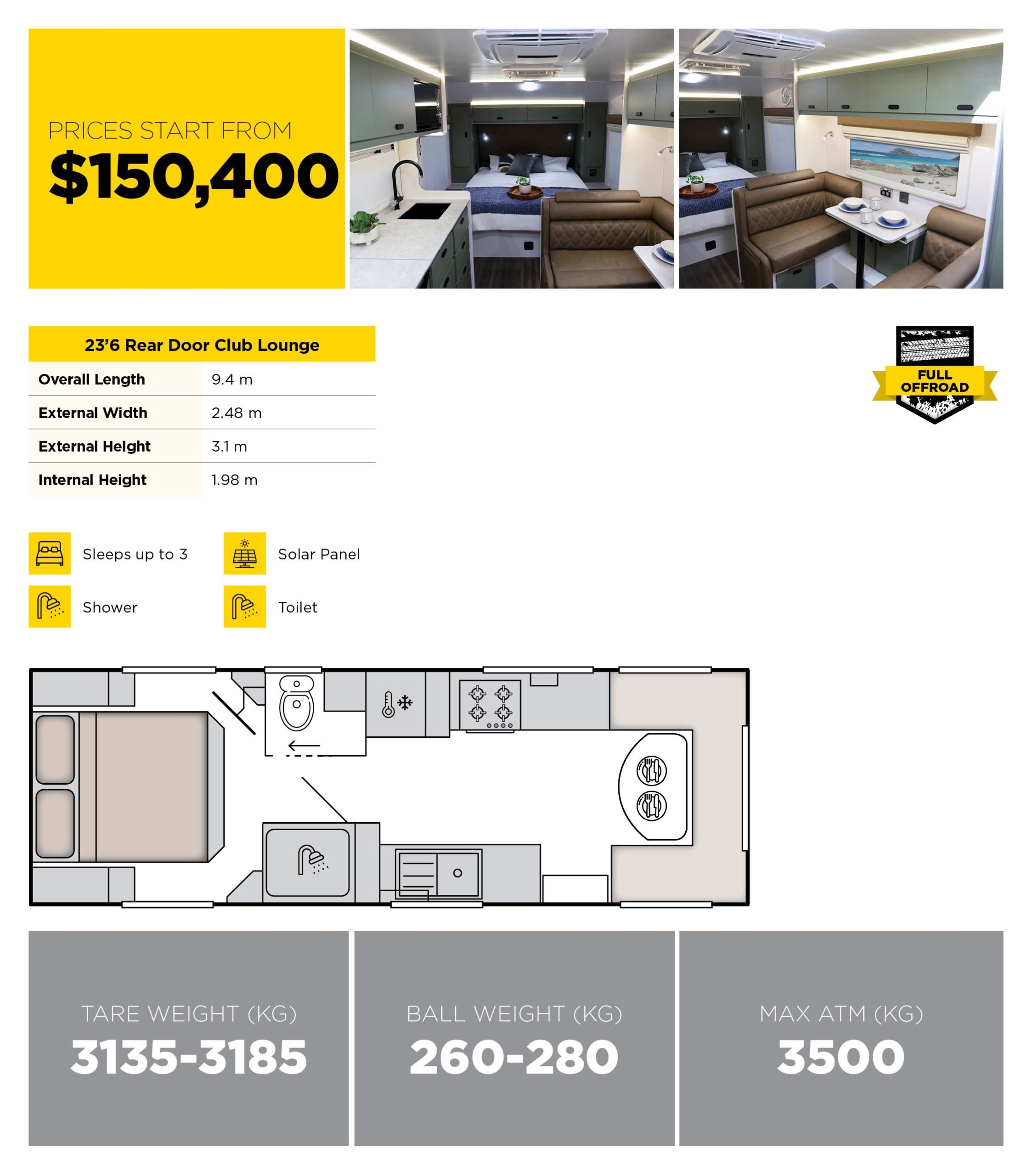

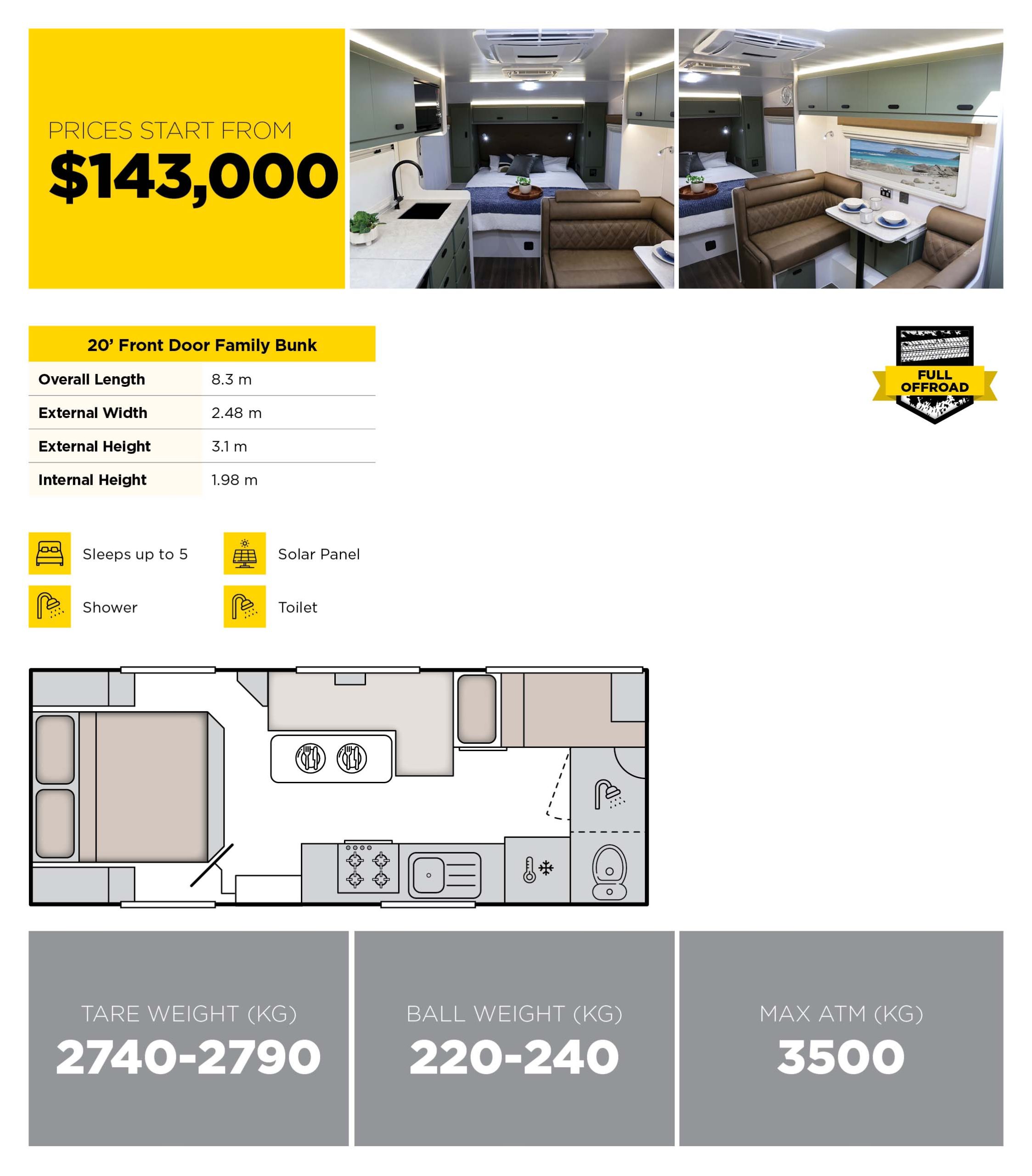

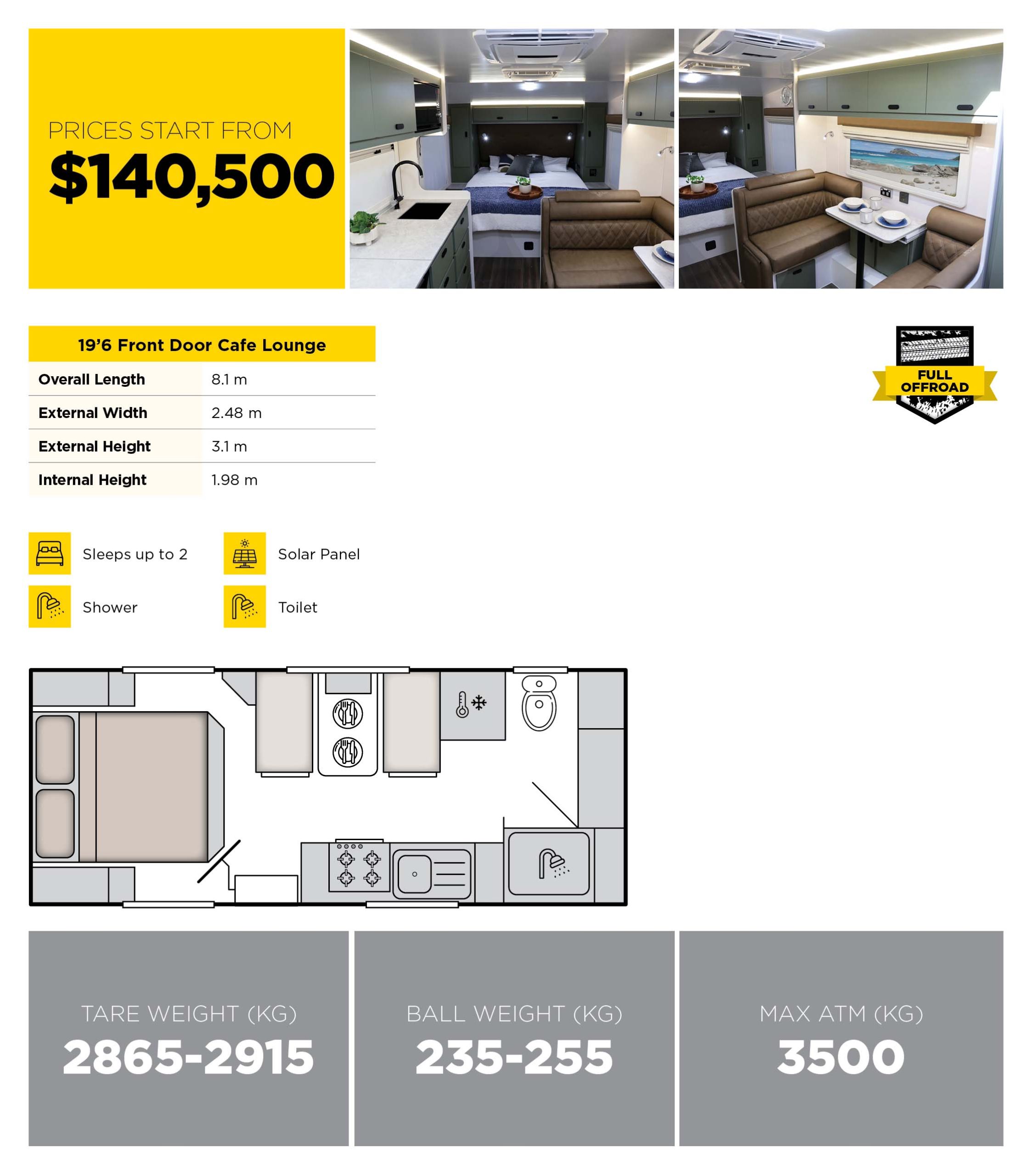

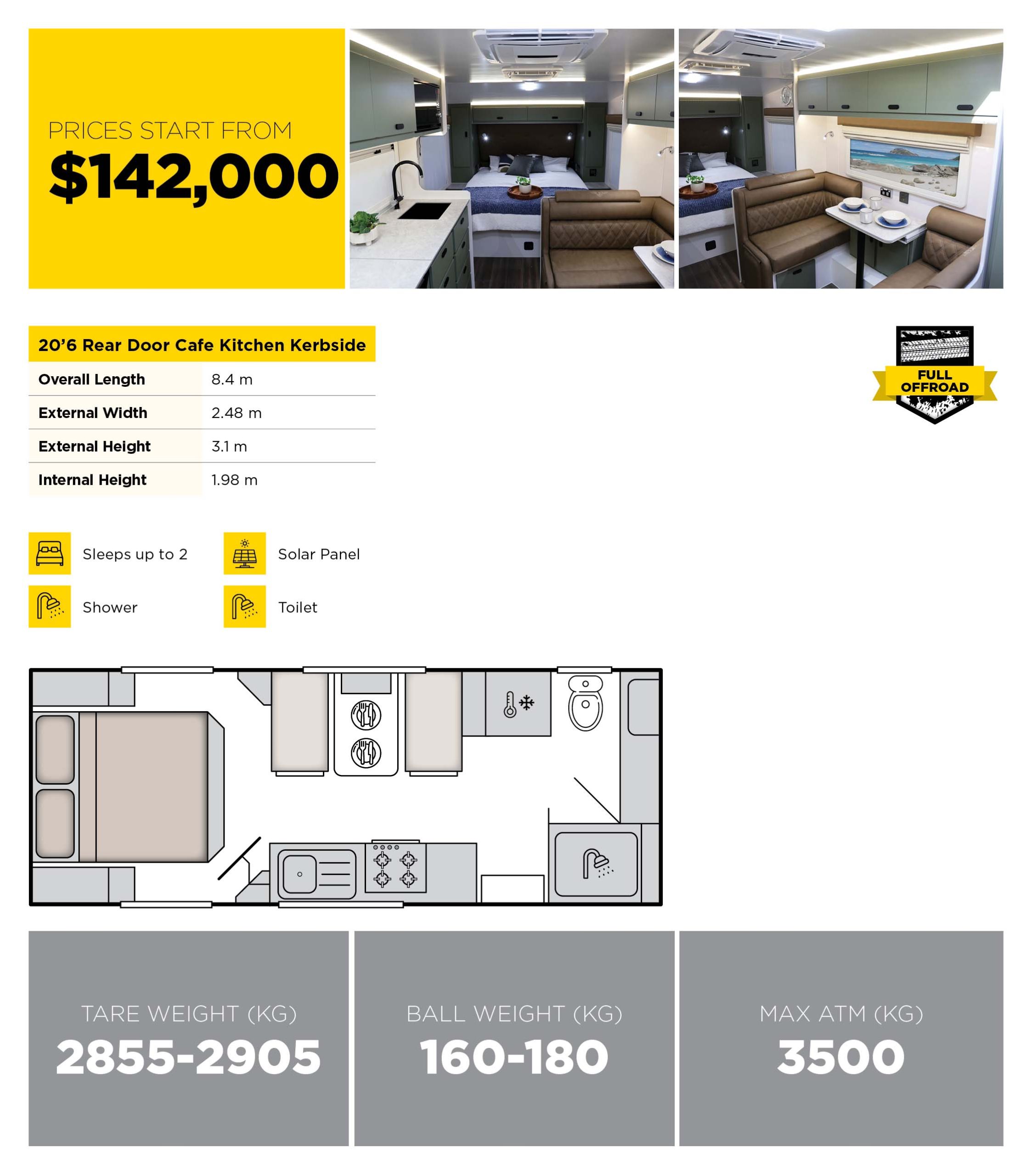

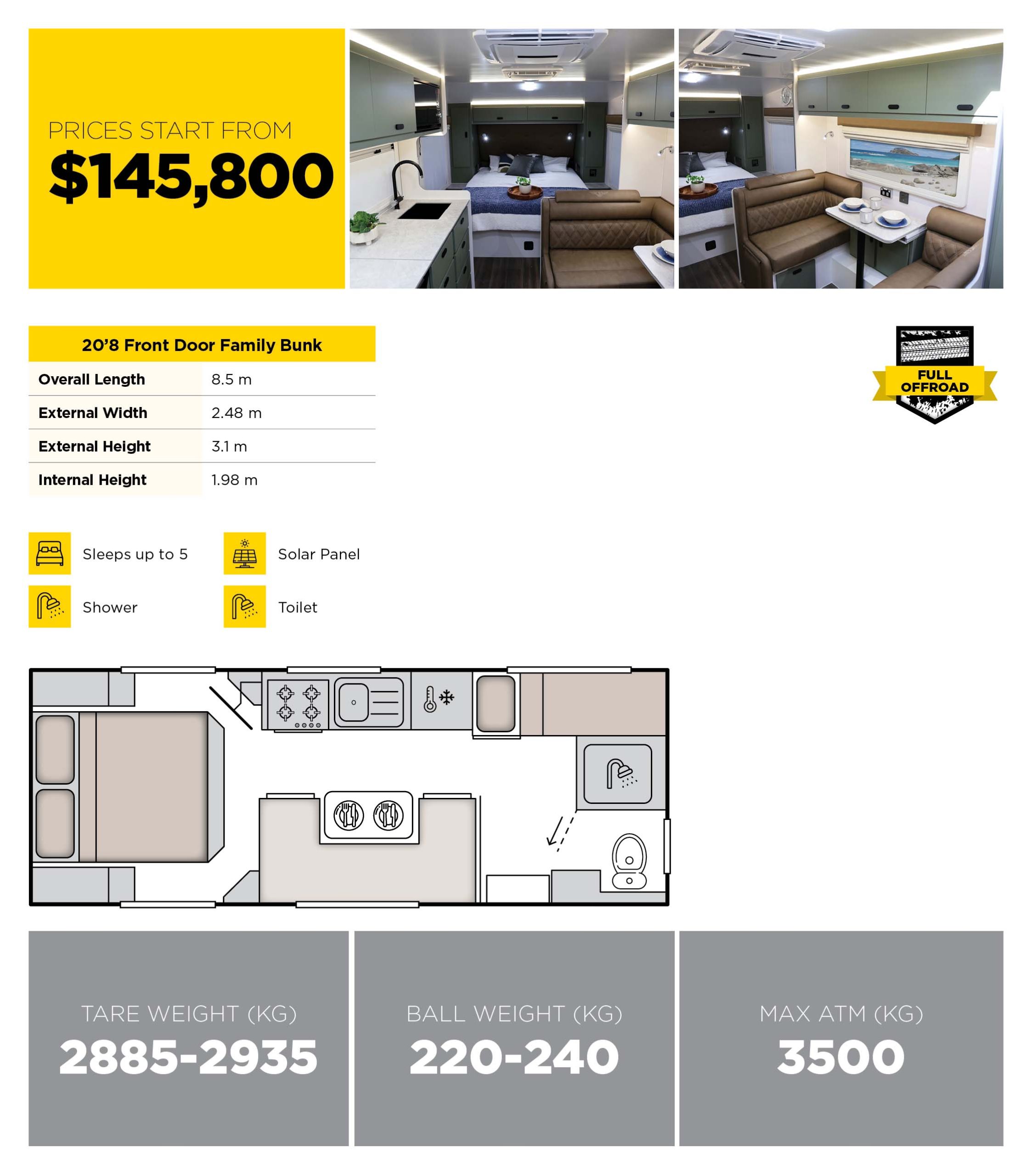

Floor Plans

The Scorpion Sting comes in a range of configurations. Simply select a floorplan below to learn more.

Dimensions

Overall Body Length: 8.7m
External Width: 2.48m
External Height: 3.2m
Internal Height: 1.98m
Tare: 2800 - 2850
Tow Ball: 140kg - 160kg

Dimensions

Overall Body Length: 9.0m
External Width: 2.48m
External Height: 3.2m
Internal Height: 1.98m
Tare: 2850 - 2900
Tow Ball: 180kg - 200kg

Dimensions

Overall Body Length: 9.3m
External Width: 2.48m
External Height: 3.2m
Internal Height: 2.98m
Tare: 2900 - 2950
Tow Ball: 220kg - 240kg

Specifications

  • Premium Laminate benchtops
  • Leather upholstery
  • Footrests + headrests
  • 2 x Sirocco fans
  • Innerspring Pillow top Queen Mattress
  • Slatted bed frame on a gas struts
  • Premium vinyl flooring
  • Piano Hinges throughout
  • Cubby hole to front robes
  • Chrome buttonless handles
  • Roman blinds
  • Leather Pelmets
  •  218L compressor fridge
  • Fusion audio system + iPod Dock
  • 24″ Smart TV
  • Wineguard antenna
  • Full oven
  • Touch control range hood
  • Microwave
  • Truma gas heater
  • Fire extinguisher
  • Reverse Cycle Air-corn/heating
  • Top load washing machine
  • External speakers
  • Picnic table
  • Stucco walls
  • Midi hatch + dust hatch
  • Roll out awning
  • Higher checker plate
  • Triple lock entry door
  • Skylight + Rain sensor hatch
  • European double glazed windows
  • External chrome grab handles
  • Spare wheel on rear
  • Nudge bars
  • 2 x Recovery points
  • Supgal chassis
  • 6 inch frame mainframe
  • 6 inch A-Frame + 2″ raiser
  • Cruisemaster ATX Coil 4.5T Susp.
  • 12″ Electric brakes
  • DO35 recessed coupling
  • Cooper tyres
  • 16″ anodised rims
  • Mesh on A-Frame + deflector

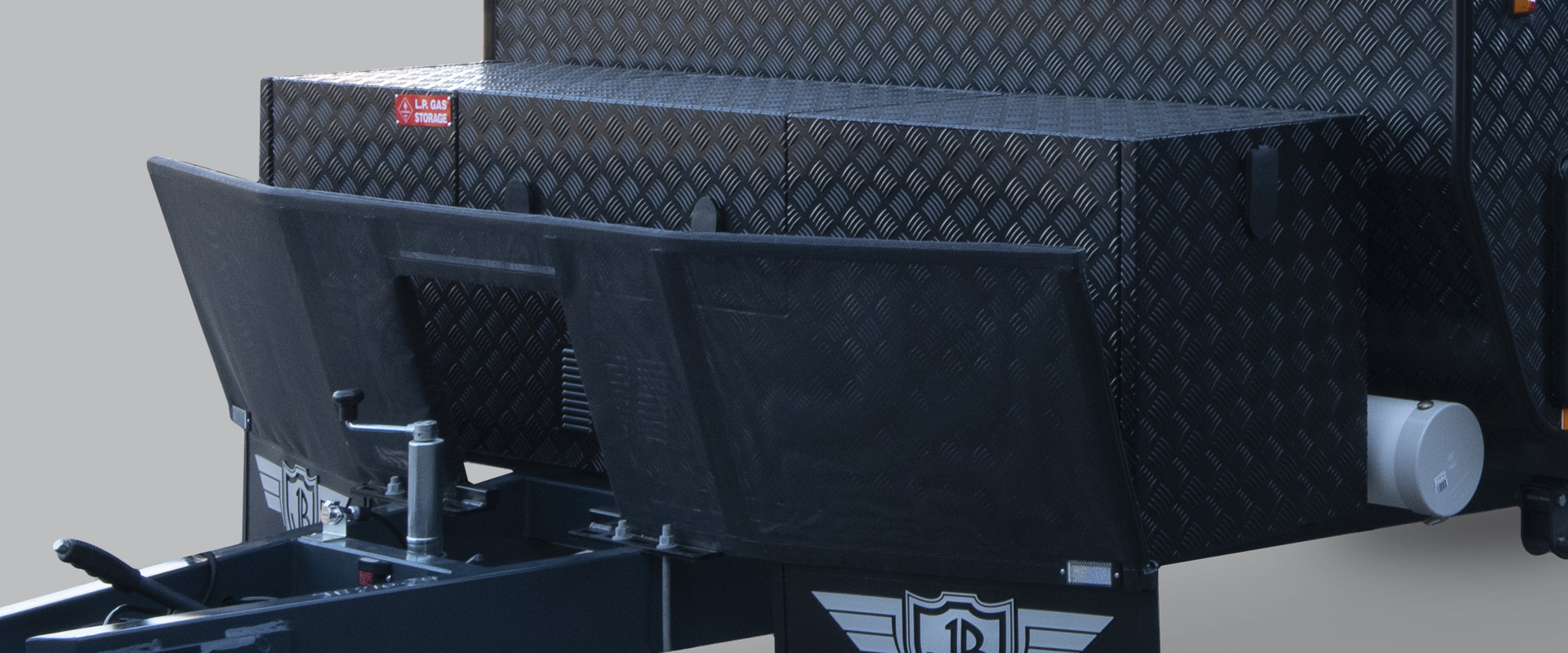

  • Large toolbox (with sliders) on A-Frame
  • ALKO – ESC
  • Gal sheet flooring
  • 2 x Jerry can holders
  • Tap on A-Frame
  • Ceramic bowl toilet
  • Flick mixer taps
  • Ceramic basin
  • External gas bayonet
  • 2 x 12V water pump
  • 2 x 9kg gas bottles
  • Stainless steel sink
  • 1 x 95L + 65L Water tanks
  • 1 x 65L dedicated drinking water
  • 1 x 95L Grey water tank
  • Swift 28L Gas/Electric HWS
  • External shower
  • 2 x 100Ah lithium batteries
  • Double Electric step
  • Reverse Camera + monitor
  • 3 x 150W solar
  • Ensuite light switch
  • LED rail light above sinks
  • Redarc BMS
  • MPPT Solar Regulator
  • DC-DC Charger
  • Car break away switch
  • 2 x Battery boxes
  • Entertainment hatch
  • Tunnleboot light + work lights at front, rear & offside
  • 2000W Inverter to all power points
